W24L010A

128K x 8 High Speed CMOS Static RAM

W24L010A Datasheet (148.25 KB)

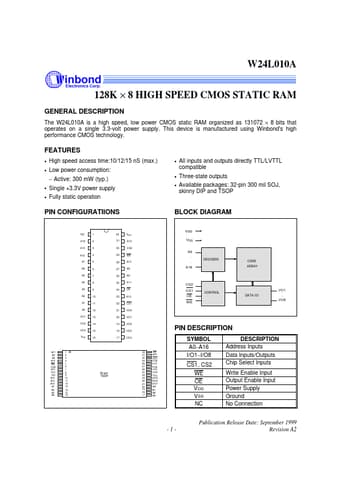

Preview of W24L010A PDF Datasheet

Datasheet Details

Part number:

W24L010A

Manufacturer:

Winbond

File Size:

148.25 KB

Description:

128k x 8 high speed cmos static ram

W24L010A Features

* High speed access time:10/12/15 nS (max.)

* Low power consumption:

* Active: 300 mW (typ.)

* Single +3.3V power supply

* Fully static operation

* All inputs and outputs directly TTL/LVTTL compatible

* Three-state outputs

* Available

W24L010A General Description

The W24L010A is a high speed, low power CMOS static RAM organized as 131072 × 8 bits that operates on a single 3.3-volt power supply. This device is manufactured using Winbond's high performance CMOS technology. FEATURES

* High speed access time:10/12/15 nS (max.)

* Low power consum.
