W24L011A - 128K x 8 High Speed CMOS Static RAM

Winbond

📥 Download Datasheet

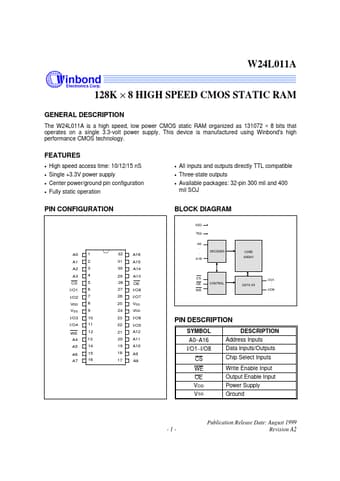

W24L011A Datasheet Preview — Preview of W24L011A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	W24L011A
Manufacturer	Winbond
File Size	127.14 KB
Description	128K x 8 High Speed CMOS Static RAM
Datasheet	W24L011A_Winbond.pdf

W24L011A Product details

Description

The W24L011A is a high speed, low power CMOS static RAM organized as 131072 × 8 bits that operates on a single 3.3-volt power supply.

Features

High speed access time: 10/12/15 nS.
Single +3.3V power supply.
Center power/ground pin configuration.
Fully static operation.
All inputs and outputs directly TTL compatible.
Three-state outputs.
Available packages: 32-pin 300 mil and 400 mil SOJ PIN.
