WFU2N60B

Silicon N-Channel MOSFET

WFU2N60B Features

* 2A,600V,RDS(on)(Max 5.0Ω)@VGS=10V Ultra-low Gate Charge(Typical 9nC) Fast Switching Capability 100%Avalanche Tested Maximum Junction Temperature Range(150℃) General Description This Power MOSFET is produced using Winsemi's advanced planar stripe,VDMOS technology. This

WFU2N60B General Description

This Power MOSFET is produced using Winsemi's advanced planar stripe,VDMOS technology. This latest technology has been especially designed to minimize on -state resistance,have a high rugged avalanche characteristics. This devices is specially well suited for high efficiency switch mode power supply.

WFU2N60B Datasheet (604.30 KB)

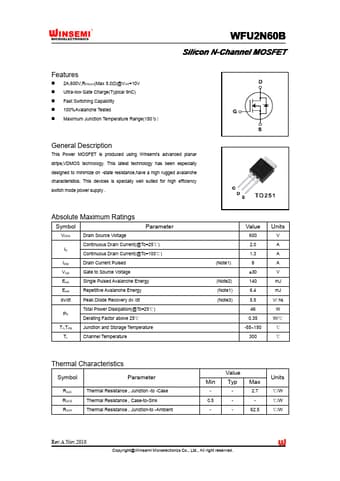

Preview of WFU2N60B PDF

Datasheet Details

Part number:

WFU2N60B

Manufacturer:

Winsemi

File Size:

604.30 KB

Description:

Silicon n-channel mosfet.
