CMPA801B030F1 Datasheet - Wolfspeed

Power Amplifier

CMPA801B030F1 Features

* 35 W Typical PSAT >36% Typical Power Added Efficiency

* 19 dB Large Signal Gain

* High Temperature Operation Note: Features are typical performance across frequency under 25°C operation. Please reference performance charts for additional details. Application

CMPA801B030F1 General Description

Cree’s CMPA801B030F1 is a packaged, 35 W HPA utilizing Cree’s high performance, 0.15um GaN on SiC production process. The CMPA801B030F1 operates from 8-12 GHz and targets pulsed radar systems supporting both defense and commercial applications. With 2 stages of gain, this high performance amplifier .

CMPA801B030F1 Datasheet (1.43 MB)

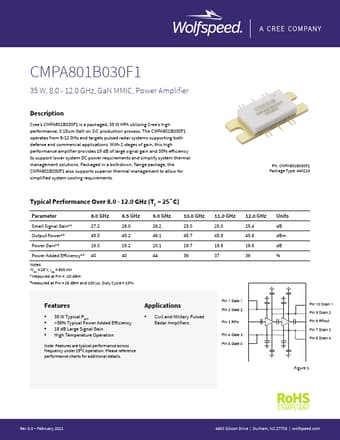

CMPA801B030F1 Datasheet Preview — Preview of CMPA801B030F1 PDF

Datasheet Details

Part number:

CMPA801B030F1

Manufacturer:

Wolfspeed

File Size:

1.43 MB

Description:

Power amplifier.
