XC9536XL - High Performance CPLD

Xilinx

📥 Download Datasheet

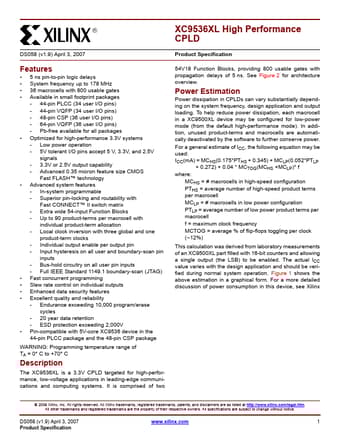

XC9536XL Datasheet Preview — Preview of XC9536XL PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: XC9536XL
Manufacturer: Xilinx
File Size: 182.68 KB
Datasheet: XC9536XL-Xilinx.pdf
Description: High Performance CPLD

XC9536XL Product details

Features

5 ns pin-to-pin logic delays.
System frequency up to 178 MHz.
36 macrocells with 800 usable gates.
Available in small footprint packages - 44-pin PLCC (34 user I/O pins) - 44-pin VQFP (34 user I/O pins) - 48-pin CSP (36 user I/O pins) - 64-pin VQFP (36 user I/O pins) - Pb-free available for all packages.
Optimized for high-performance 3.3V systems - Low power operation - 5V tolerant I/O pins accept 5 V, 3.3V, and 2.5V signals - 3.3V or 2.5V output ca.
