XC95108

XC95108 In-System Programmable CPLD

Xilinx

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	AMD	XC95108-20TQ100C	IC CPLD 108MC 20NS 100TQFP	DigiKey	0	0	$0	🛒 Buy Now

XC95108 Datasheet (108.96 KB)

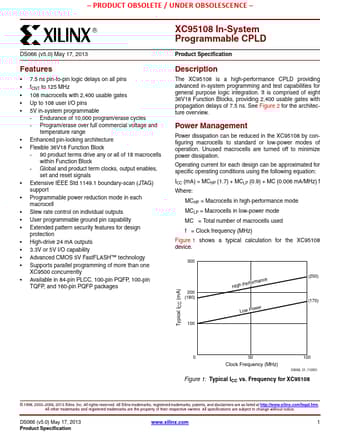

XC95108 Datasheet Preview — Preview of XC95108 PDF

Datasheet Details

Part number:

XC95108

Manufacturer:

Xilinx

File Size:

108.96 KB

Description:

Xc95108 in-system programmable cpld.

XC95108 Features

* 7.5 ns pin-to-pin logic delays on all pins fCNT to 125 MHz 108 macrocells with 2400 usable gates Up to 108 user I/O pins 5 V in-system programmable (ISP) - Endurance of 10,000 program/erase cycles - Program/erase over full commercial voltage and temp

XC95108 General Description

The XC95108 is a high-performance CPLD providing advanced in-system programming and test capabilities for general purpose logic integration. It is comprised of six 36V18 Function Blocks, providing 2,400 usable gates with propagation delays of 7.5 ns. See Figure 2 for the architecture overview. 100 .
