XC9505 - Step-up / Inverting DC/DC Controller

Datasheet Summary

Description

XC9505 series are PWM controlled, PWM/PFM switching 2 channel (step-down and inverting) DC/DC controller ICs.

With 0.9V of internal standard voltage supply, and using externally connected components, the output 1 voltage (step-down DC/DC controller) can be set freely within a range of 0.9V to 6.0V.

Features

  • ch. DC/DC Controller (Step-Down / Inverting) Output Voltage Range : 0.9V ~ 6.0V (set by FB1 pin) Output Current : More than 1000mA (VIN=5.0V, VOUT=3.3V) Maximum Duty Cycle : 100% Soft-Start Internally Set-Up Output Voltage Range : -30V ~ 0V (set by FB2 pin) Output Current : More than -100mA (VIN=5.0V, VOUT= - 3.3V) Maximum Duty Cycle : 80% Operating Voltage Range : 2.0V ~ 10.0V Oscillation Freq.

📥 Download Datasheet

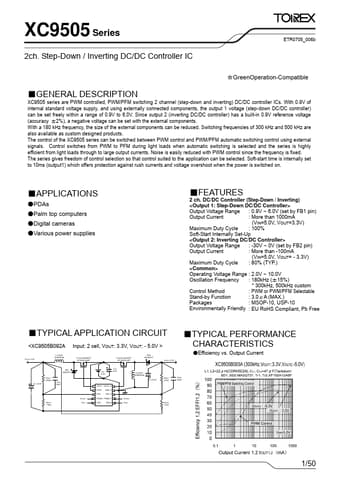

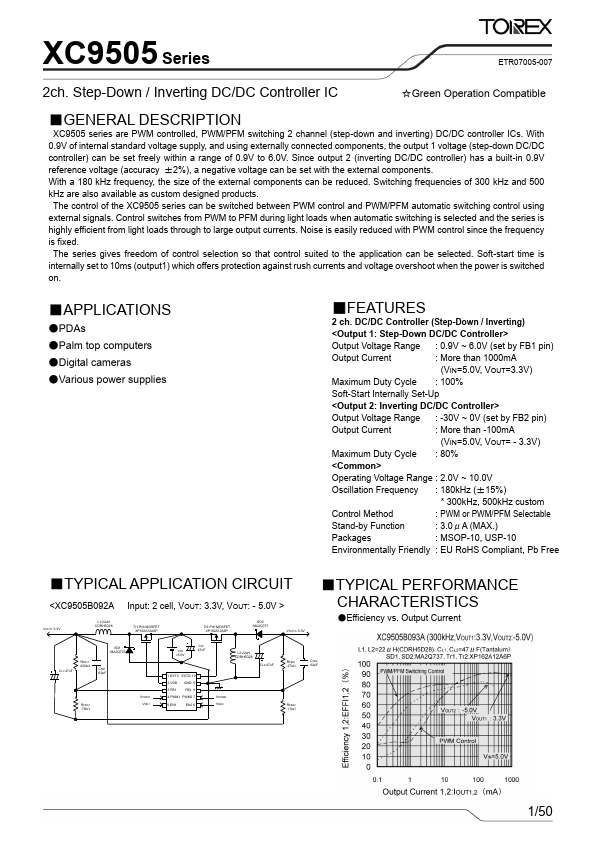

Datasheet preview – XC9505

Datasheet Details

Part number XC9505
Manufacturer Torex Semiconductor
File Size 3.62 MB
Description Step-up / Inverting DC/DC Controller
Datasheet download datasheet XC9505 Datasheet

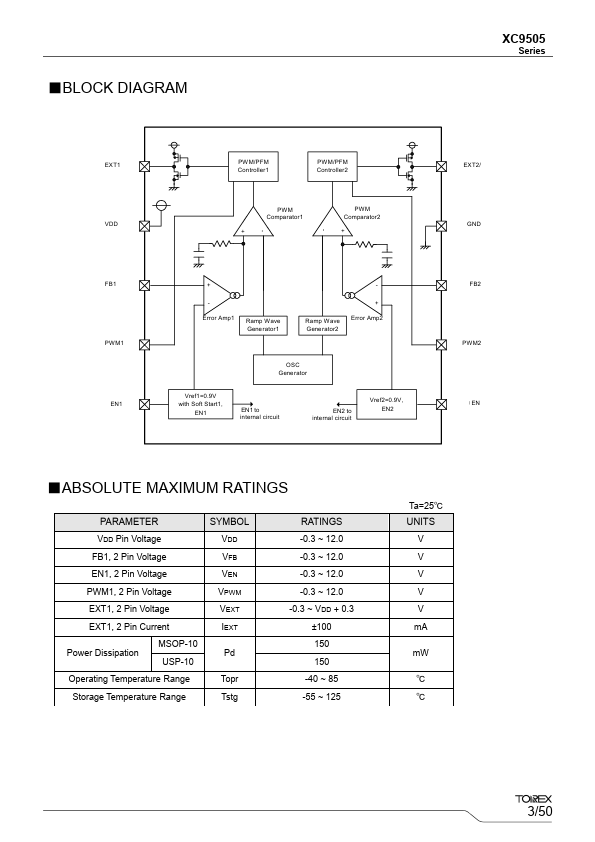

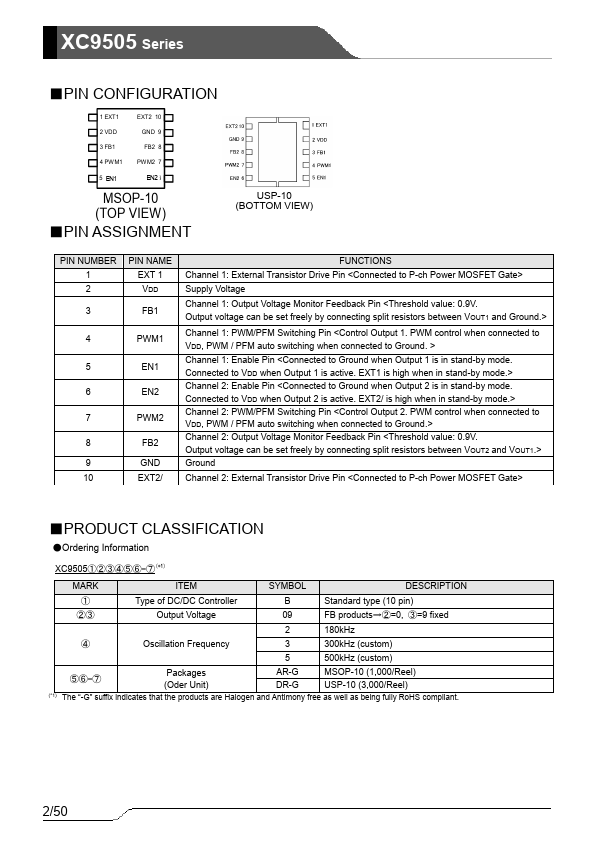

Additional preview pages of the XC9505 datasheet.

📁 Similar Datasheet

  • XC9500XL - High-Performance CPLD (Xilinx)
  • XC95108 - XC95108 In-System Programmable CPLD (Xilinx)
  • XC95144 - XC95144 In-System Programmable CPLD (Xilinx)
  • XC95144XL - High Performance CPLD (Xilinx)
  • XC95144XV - High-Performance CPLD (Xilinx)
  • XC9515 - 2-channel Synchronous Step-Down DC/DC Converter (Torex)
  • XC9516 - Triple Output Power Supply (Torex)
  • XC9519 - Dual Output Step-Up/Inverting DC/DC Converter (Torex)
  • XC95216 - XC95216 In-System Programmable CPLD (Xilinx)
  • XC95288 - XC95288 In-System Programmable CPLD (Xilinx)
Other Datasheets by Torex Semiconductor
  • XC9501 - 2ch. Step-up DC/DC Controller
  • XC9502 - 2ch. Step-up / down DC/DC Controller ICs
  • XC9503 - 2ch Step-down DC/DC Controller
  • XC9504 - Step-up / Inverting DC/DC Controller
  • XC9508 - Synchronous Step-Down DC/DC Converter
  • XC9509 - Synchronous Step-Down DC/DC Converter
  • XC95 - 2ch. Step-up / down DC/DC Controller ICs
  • XC9510 - Synchronous Step-Down DC/DC Converter

Full PDF Text Transcription

Click to expand full text
XC9505 Series ETR07005-007 2ch. Step-Down / Inverting DC/DC Controller IC ☆Green Operation Compatible ■GENERAL DESCRIPTION XC9505 series are PWM controlled, PWM/PFM switching 2 channel (step-down and inverting) DC/DC controller ICs. With 0.9V of internal standard voltage supply, and using externally connected components, the output 1 voltage (step-down DC/DC controller) can be set freely within a range of 0.9V to 6.0V. Since output 2 (inverting DC/DC controller) has a built-in 0.9V reference voltage (accuracy ±2%), a negative voltage can be set with the external components. With a 180 kHz frequency, the size of the external components can be reduced. Switching frequencies of 300 kHz and 500 kHz are also available as custom designed products.
