XC95144XL - High Performance CPLD

Datasheet Summary

Features

  • 5 ns pin-to-pin logic delays.
  • System frequency up to 178 MHz.
  • 144 macrocells with 3,200 usable gates.
  • Available in small footprint packages - 100-pin TQFP (81 user I/O pins) - 144-pin TQFP (117 user I/O pins) - 144-CSP (117 user I/O pins) - Pb-free available for all packages.
  • Optimized for high-performance 3.3V systems - Low power operation - 5V tolerant I/O pins accept 5V, 3.3V, and 2.5V signals - 3.3V or 2.5V output capability - Advanced 0.35 micro.

📥 Download Datasheet

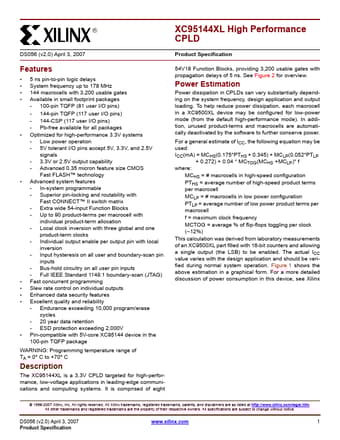

Datasheet preview – XC95144XL
