XP10TN010CMT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP10TN010CMT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Lower On-resistance .
XP10TN010C series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

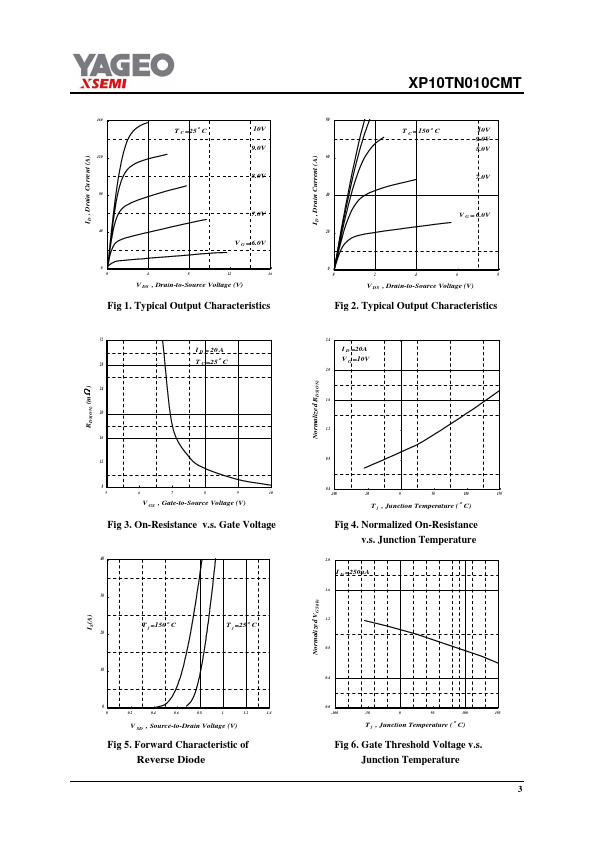

XP10TN010CMT Datasheet Preview — Preview of XP10TN010CMT PDF

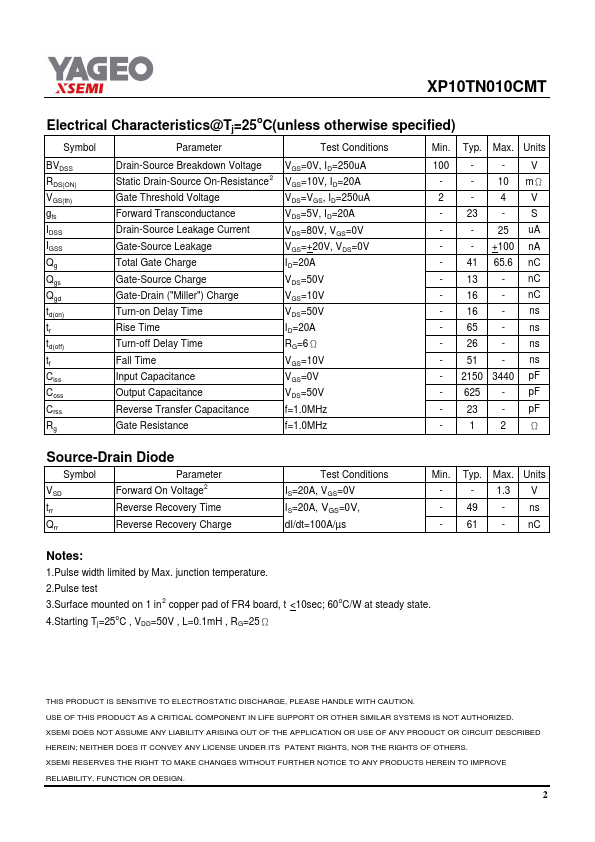

Datasheet Specifications

Part number: XP10TN010CMT
Manufacturer: YAGEO
File Size: 323.75 KB
Datasheet: XP10TN010CMT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) ID 100V 10mΩ 49A D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter R
