XP10TN028MT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP10TN028MT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ SO-8 Compatible with Heatsink ▼ Lower Gate Charg.
XP10TN028 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

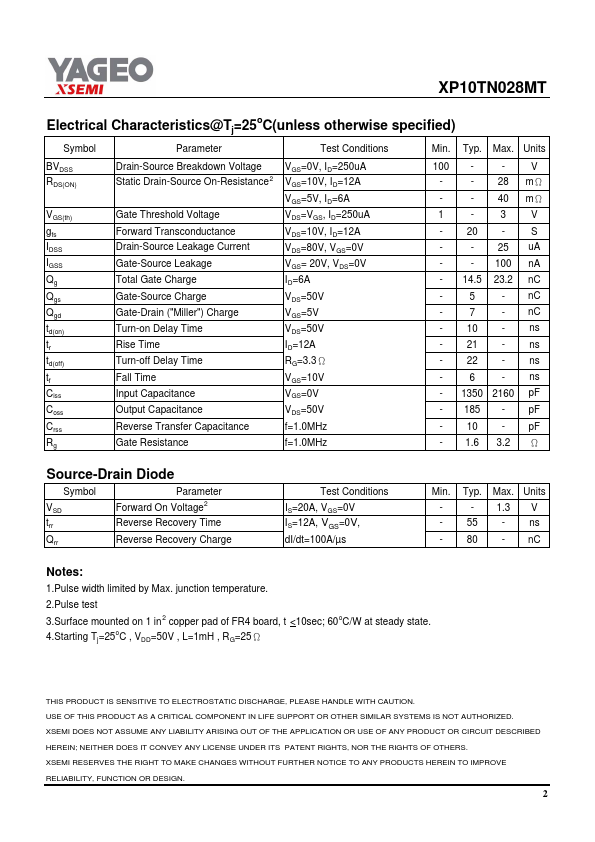

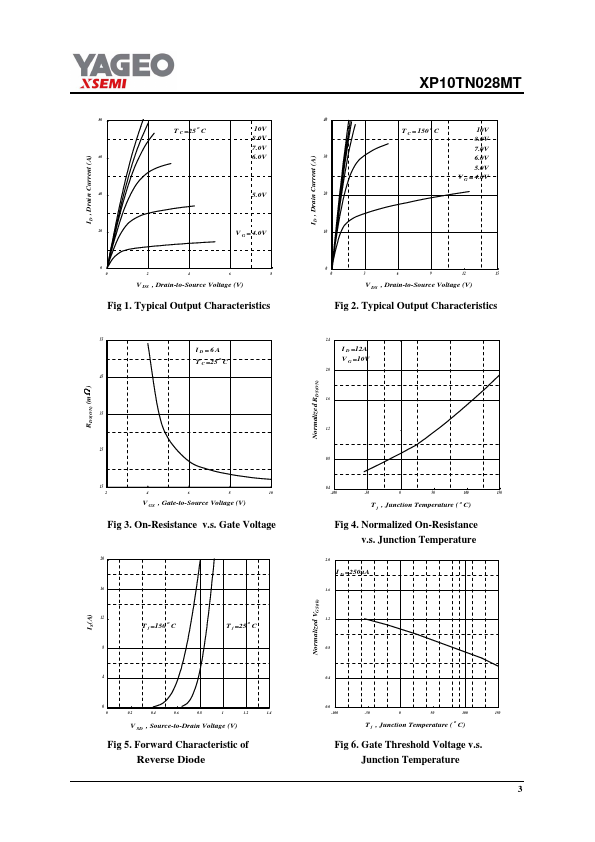

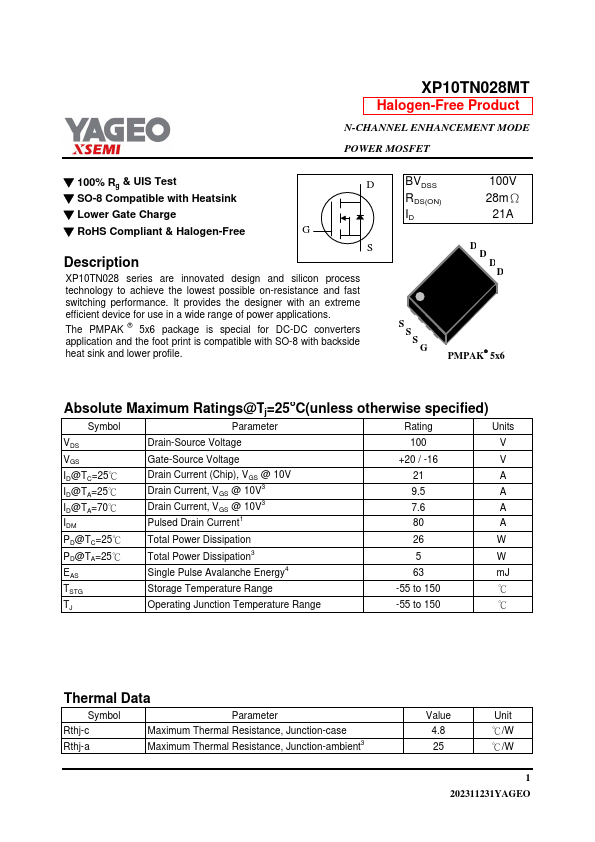

XP10TN028MT Datasheet Preview — Preview of XP10TN028MT PDF

Datasheet Specifications

Part number: XP10TN028MT
Manufacturer: YAGEO
File Size: 323.91 KB
Datasheet: XP10TN028MT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) ID 100V 28mΩ 21A D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter R
