XP3800YT DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP3800YT Halogen-Free Product DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Easy for Synchronous Buck G1 Converter Applic.
XP3800 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

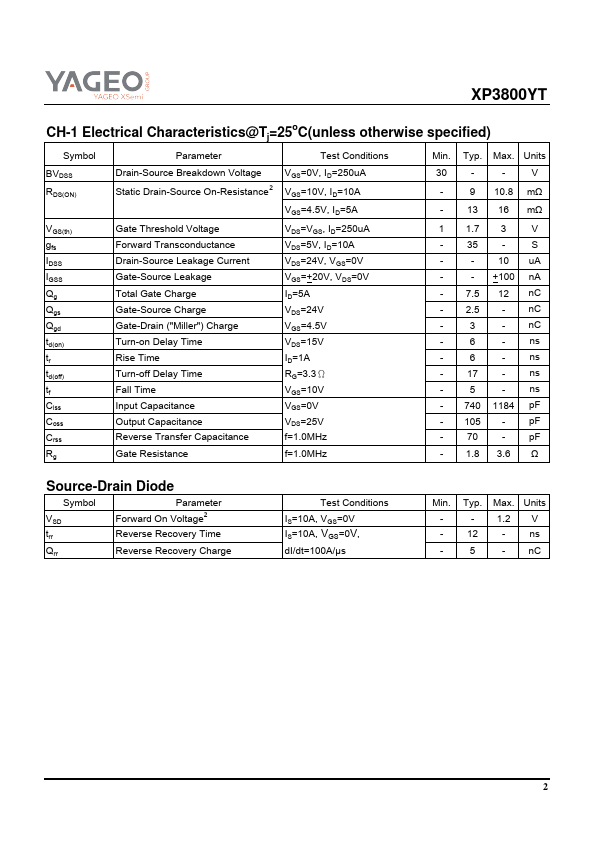

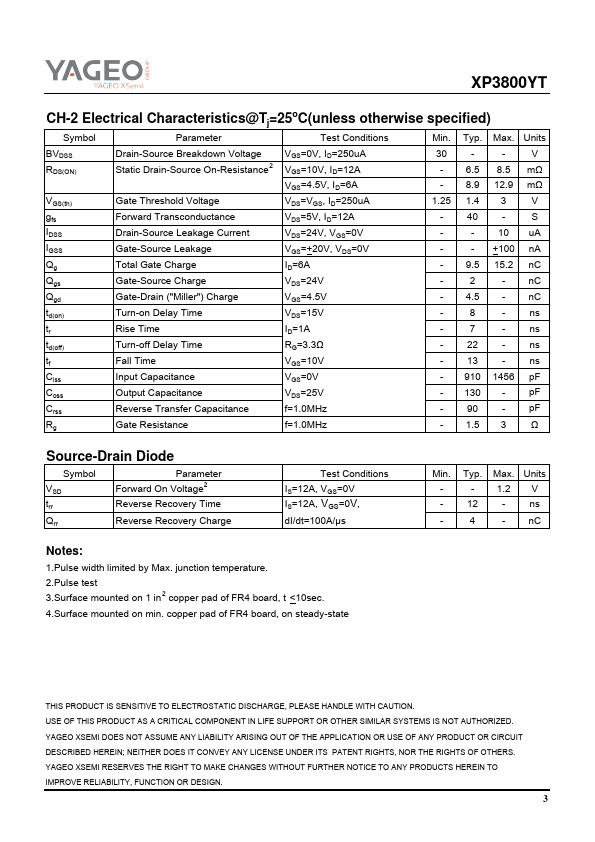

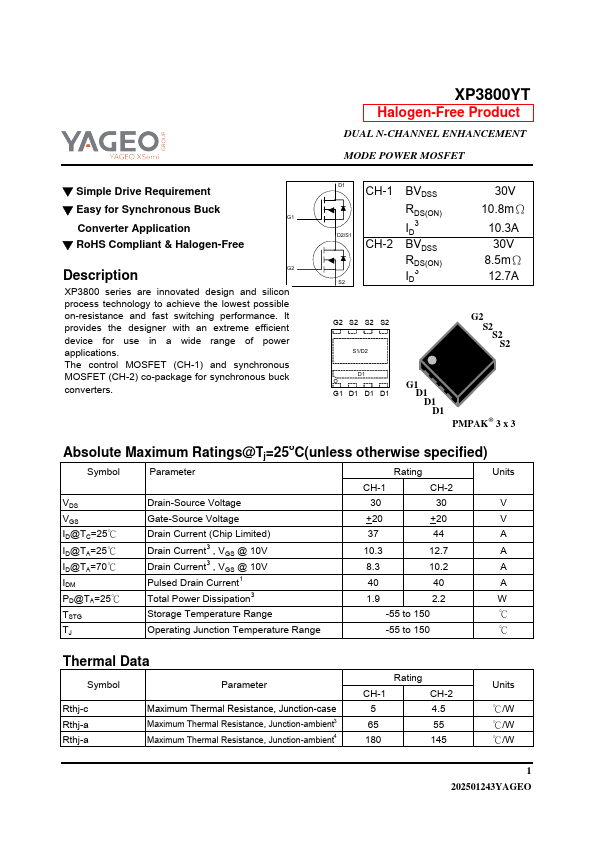

XP3800YT Datasheet Preview — Preview of XP3800YT PDF

Datasheet Specifications

Part number: XP3800YT
Manufacturer: YAGEO
File Size: 688.89 KB
Datasheet: XP3800YT-YAGEO.pdf
Description: DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The control MOSFET (CH-1) and synchronous MOSFET (CH-2) co-package for synchronous buck converters. . D1 CH-1 BVDSS RDS(ON) D2/S1 ID3 CH-2 BVDSS RDS(ON) S2 ID3 30V 10.8mΩ 10.3A 30V 8.5mΩ 12.7A G2 S2 S2 S2 S1/D2 G2 S2 S2 S2 D1 G1 D1 D1 D1 G1 D1 D1 D1 PMPAK® 3 x 3 Absolute Maximum Ratin
