XP3840CDT33 DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP3840CDT33 Halogen-Free Product DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Buck-boost in Computing ▼ RoHS Compliant &.
G2 S2 XP3840 series are innovated design and silicon process technology to achieve the lowest Top View Bottom View possible on-resistance and fas.

📥 Download Datasheet

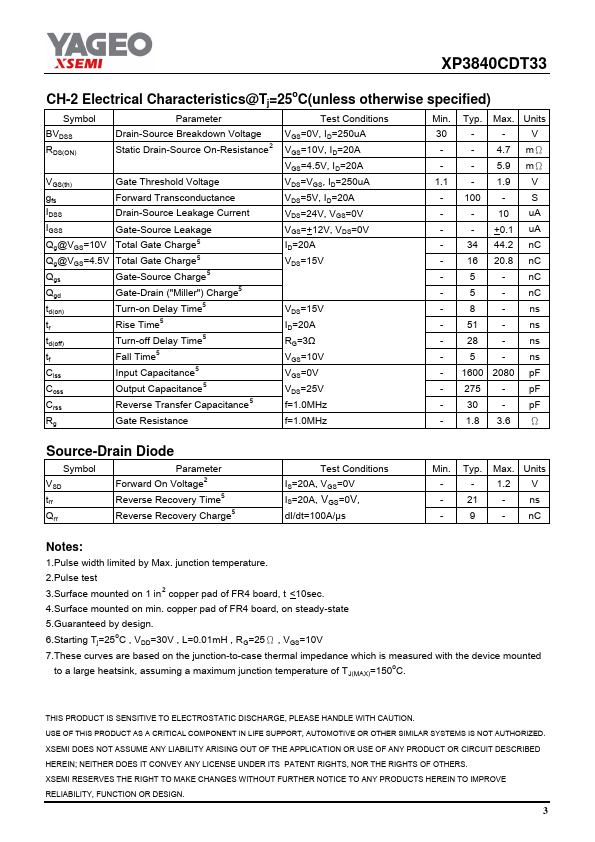

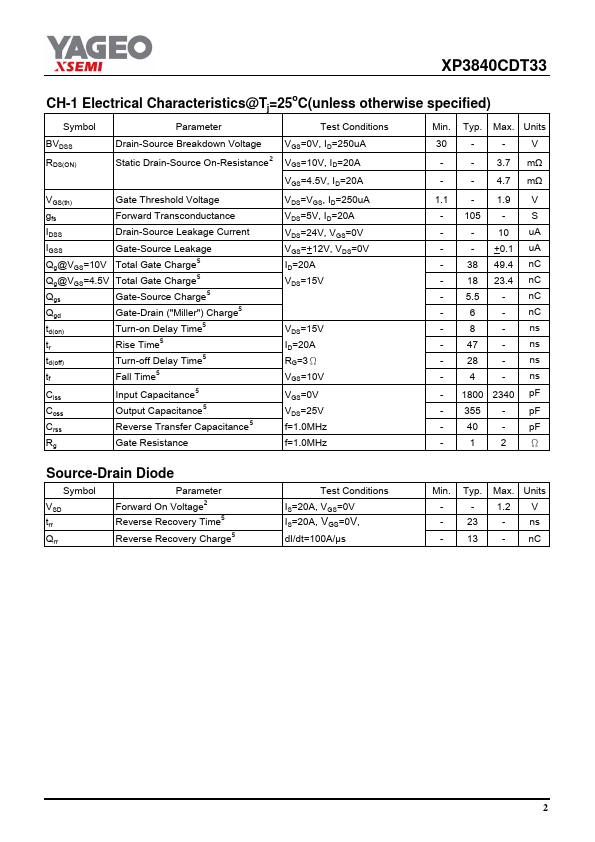

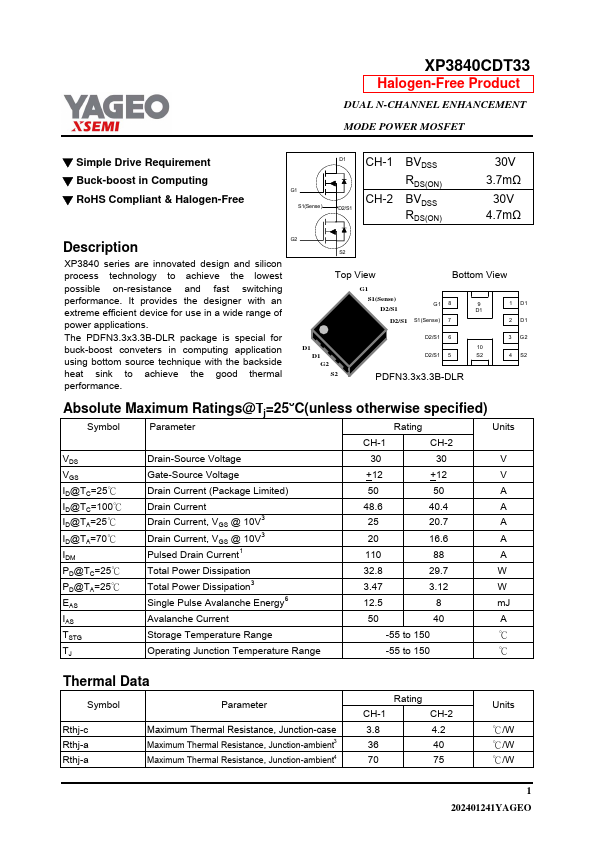

XP3840CDT33 Datasheet Preview — Preview of XP3840CDT33 PDF

Datasheet Specifications

Part number: XP3840CDT33
Manufacturer: YAGEO
File Size: 306.47 KB
Datasheet: XP3840CDT33-YAGEO.pdf
Description: DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* S1(Sense) D2/S1 G1 8 9 D1 D2/S1 S1(Sense) 7 1 D1 2 D1 The PDFN3.3x3.3B-DLR package is special for D2/S1 6 3 G2 buck-boost conveters in computing application using bottom source technique with the backside D1 D1 G2 10 D2/S1 5 S2 4 S2 heat sink to achieve the good thermal performance.
