XP3838CDT33 DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

XP3838CDT33 Halogen-Free Product DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Buck-boost in Computing ▼ RoHS Compliant &.
G2 S2 XP3838 series are innovated design and silicon process technology to achieve the lowest Top View Bottom View possible on-resistance and fas.

📥 Download Datasheet

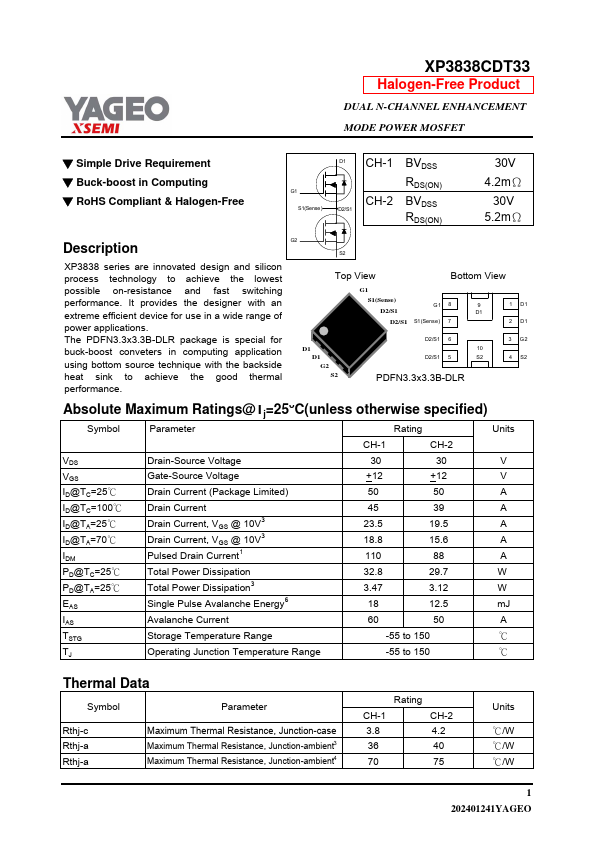

Preview of XP3838CDT33 PDF

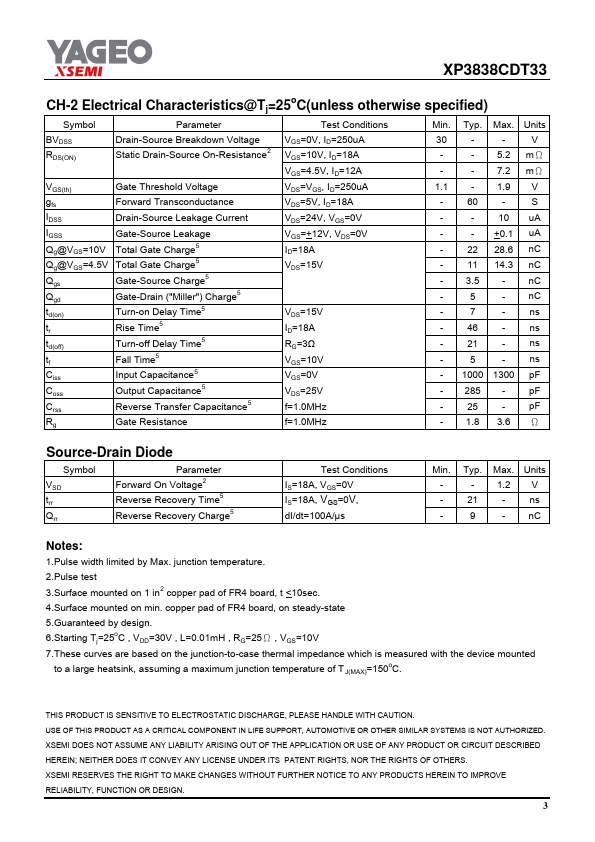

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP3838CDT33
Manufacturer
YAGEO
File Size
306.53 KB
Datasheet
XP3838CDT33-YAGEO.pdf
Description
DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* G1 S1(Sense) D2/S1 G1 8 9 D1 D2/S1 S1(Sense) 7 1 D1 2 D1 The PDFN3.3x3.3B-DLR package is special for buck-boost conveters in computing application using bottom source technique with the backside heat sink to achieve the good thermal performance. D1 D1 G2 S2 D2/S1 6 10 D2/S1 5 S2 PDFN3
