XP3P020J P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP3P020J Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characteristic.
XP3P020 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

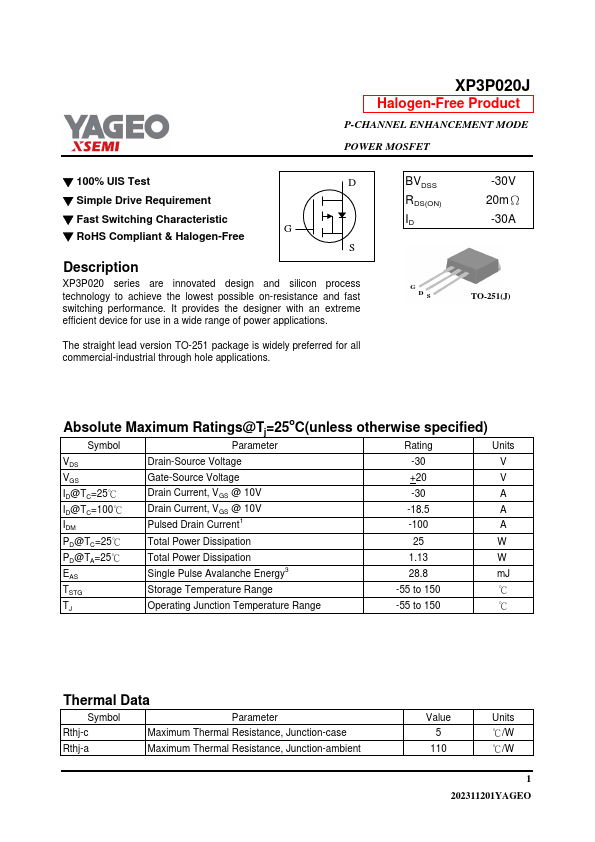

XP3P020J Datasheet Preview — Preview of XP3P020J PDF

Datasheet Specifications

Part number: XP3P020J
Manufacturer: YAGEO
File Size: 143.36 KB
Datasheet: XP3P020J-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The straight lead version TO-251 package is widely preferred for all commercial-industrial through hole applications. BVDSS RDS(ON) ID -30V 20mΩ -30A G DS TO-251(J) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS Drain-Source Voltage -30
