XP3P050AG P-CHANNEL ENHANCEMENT MODE POWER MOSFET

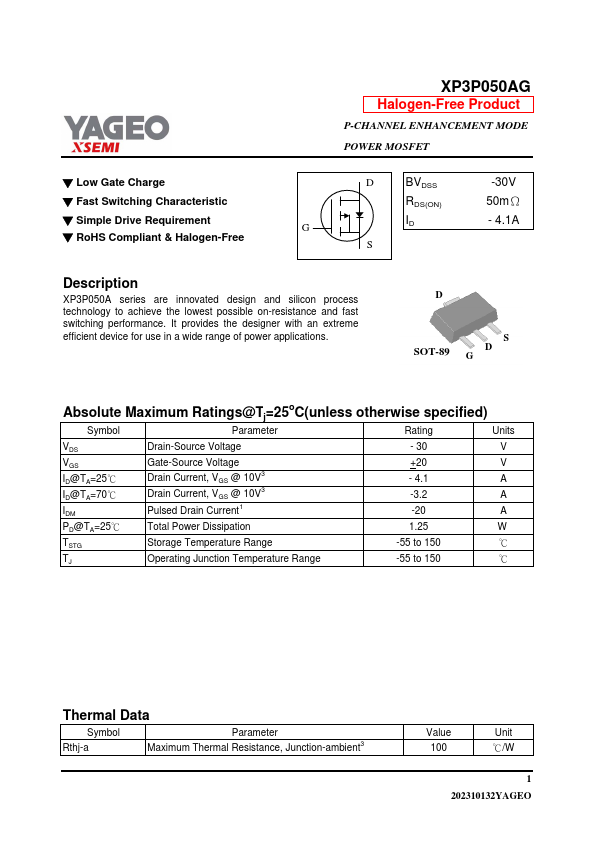

📥 Download Datasheet  Datasheet Preview Page 1

Description

▼ Low Gate Charge ▼ Fast Switching Characteristic ▼ Simple Drive Requirement ▼ RoHS Compliant & Halogen-Free XP3P050AG Halogen-Free Product P-CHANNEL.
XP3P050A series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

Preview of XP3P050AG PDF

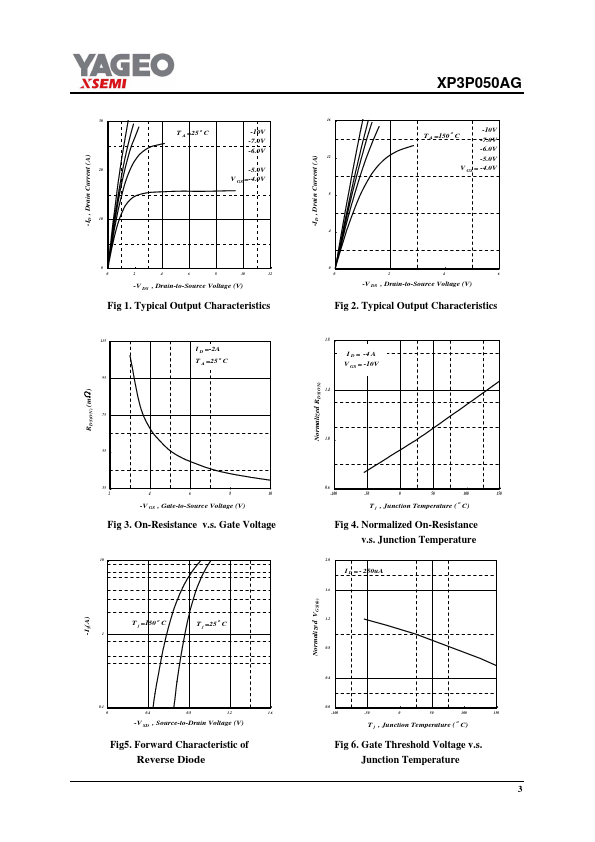

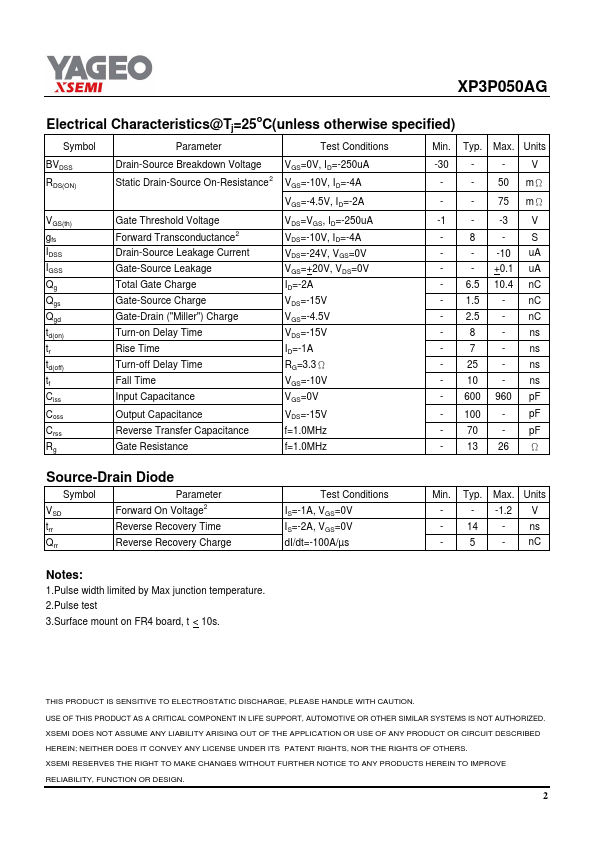

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP3P050AG
Manufacturer
YAGEO
File Size
170.13 KB
Datasheet
XP3P050AG-YAGEO.pdf
Description
P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* D S SOT-89 D G Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ TSTG TJ Drain-Source Voltage Gate-Source Voltage Drain Current, VGS @ 10V3 Drain Current, VGS @ 10V3 Pulsed Drain Current1 Total Power Dissi
