XP3P050AH P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP3P050AH Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Lower Gate Charge ▼ Simple Drive Requirement ▼ Fast Switching Characterist.
XP3P050A series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

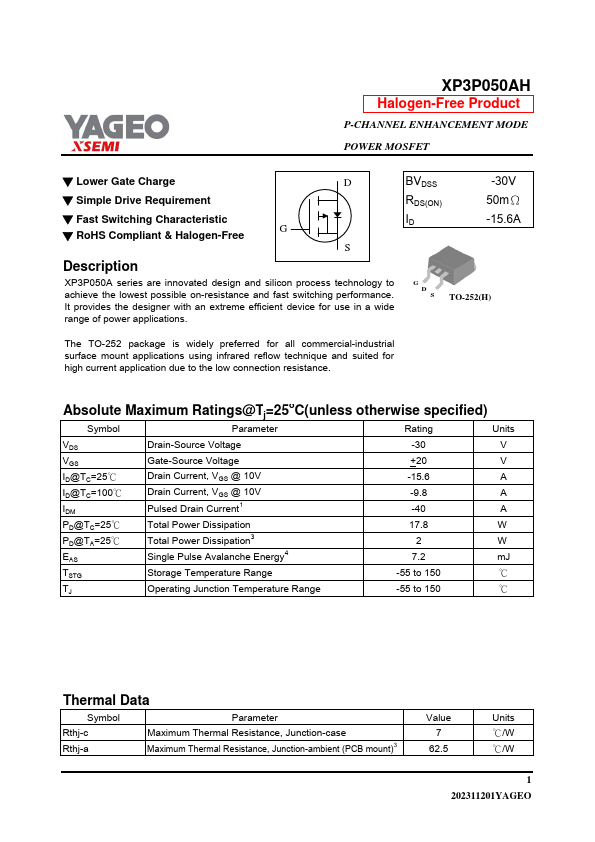

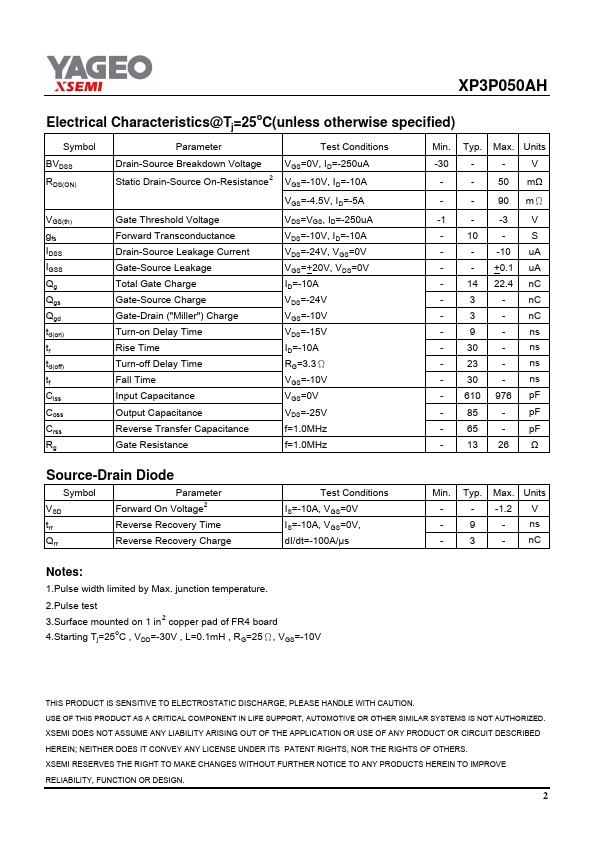

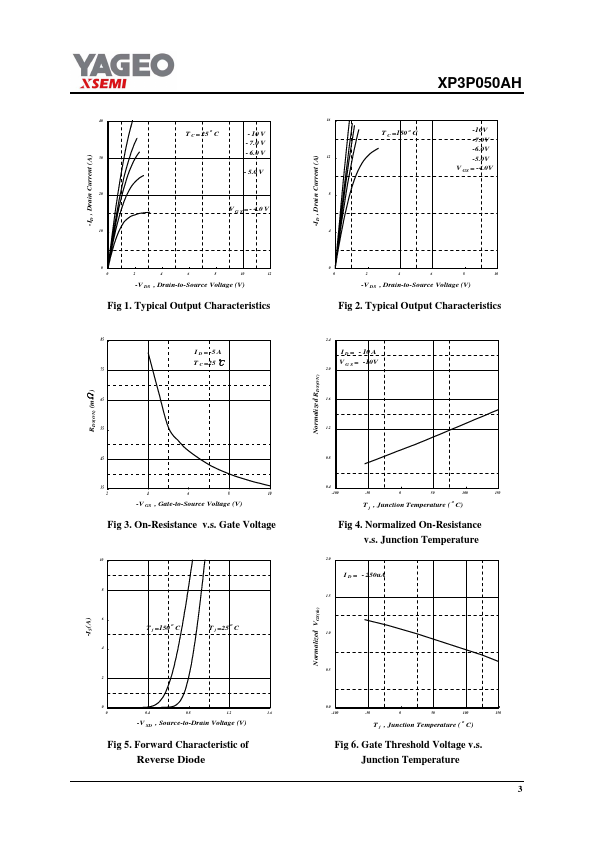

XP3P050AH Datasheet Preview — Preview of XP3P050AH PDF

Datasheet Specifications

Part number: XP3P050AH
Manufacturer: YAGEO
File Size: 217.90 KB
Datasheet: XP3P050AH-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* G D S TO-252(H) The TO-252 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Par
