XP3P7R0EI P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP3P7R0EI Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characte.
XP3P7R0E series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

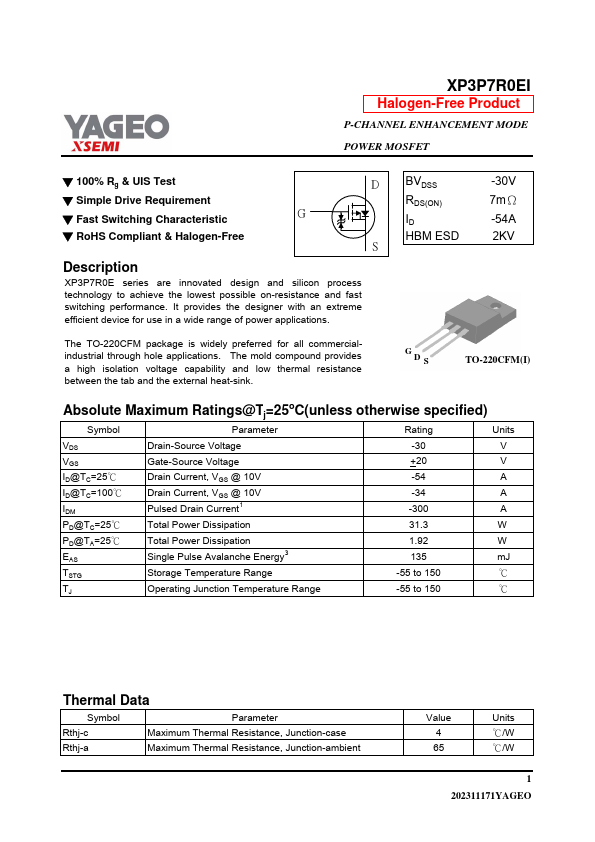

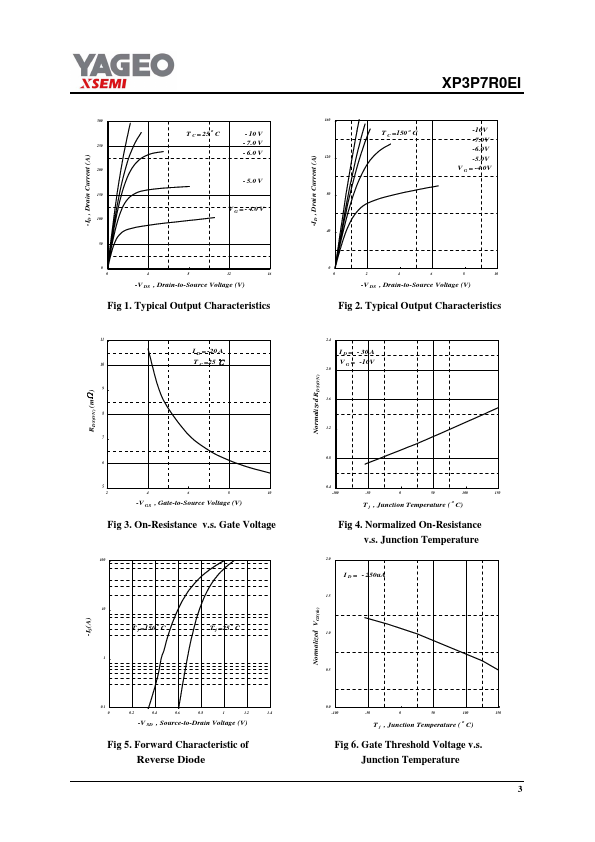

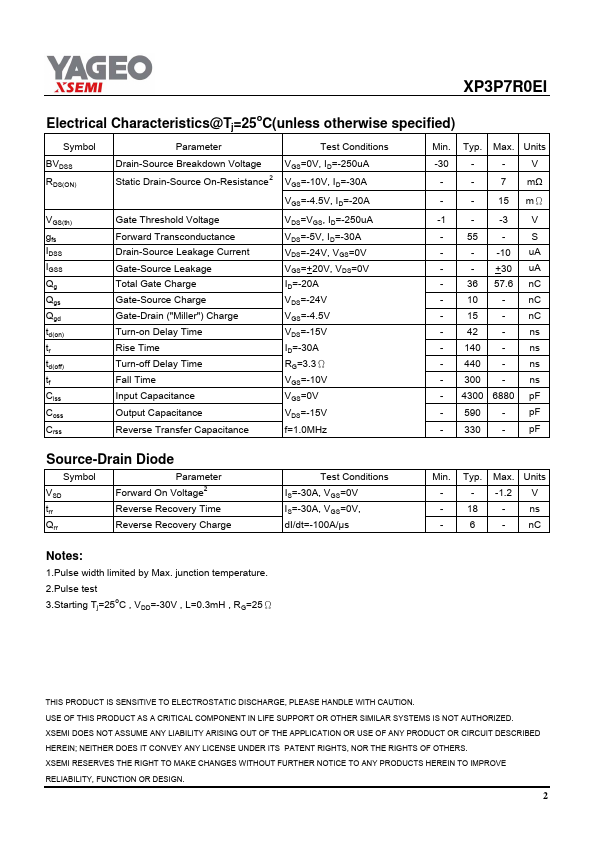

XP3P7R0EI Datasheet Preview — Preview of XP3P7R0EI PDF

Datasheet Specifications

Part number: XP3P7R0EI
Manufacturer: YAGEO
File Size: 257.38 KB
Datasheet: XP3P7R0EI-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* BVDSS RDS(ON) ID HBM ESD -30V 7mΩ -54A 2KV The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. GD S TO-220CFM(I)
