Datasheet Specifications
- Part number
- XP3P7R0ES
- Manufacturer
- YAGEO
- File Size
- 298.87 KB
- Datasheet
- XP3P7R0ES-YAGEO.pdf
- Description
- P-CHANNEL ENHANCEMENT MODE POWER MOSFET
Description

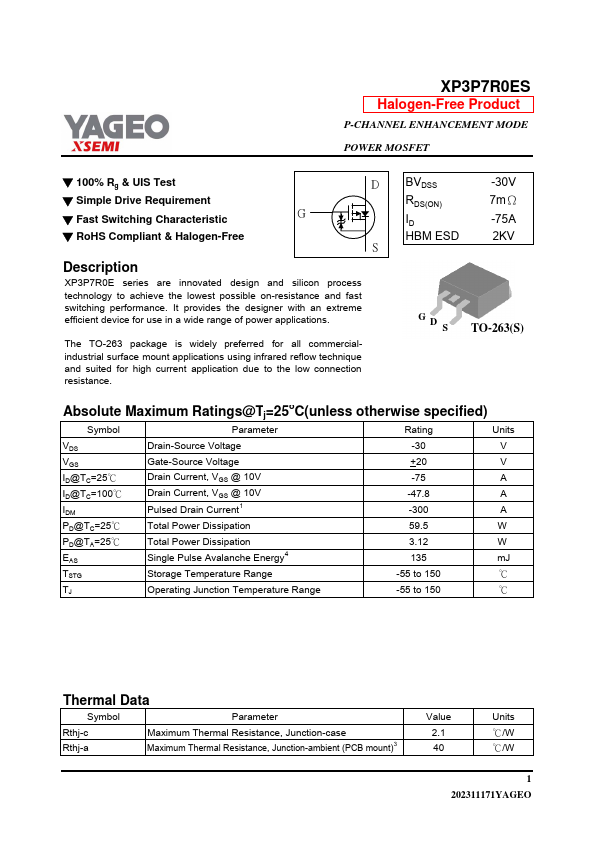

XP3P7R0ES Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characte.
Applications
* The TO-263 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID HBM ESD -30V 7mΩ -75A 2KV G D S TO-263(S) Absolute Maximum Ratings@Tj=25XP3P7R0ES Distributors
