XP4509AGM, N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP4509AGM Halogen-Free Product N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low Gate Charge ▼ Fast Switching Performanc.
XP4509A series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

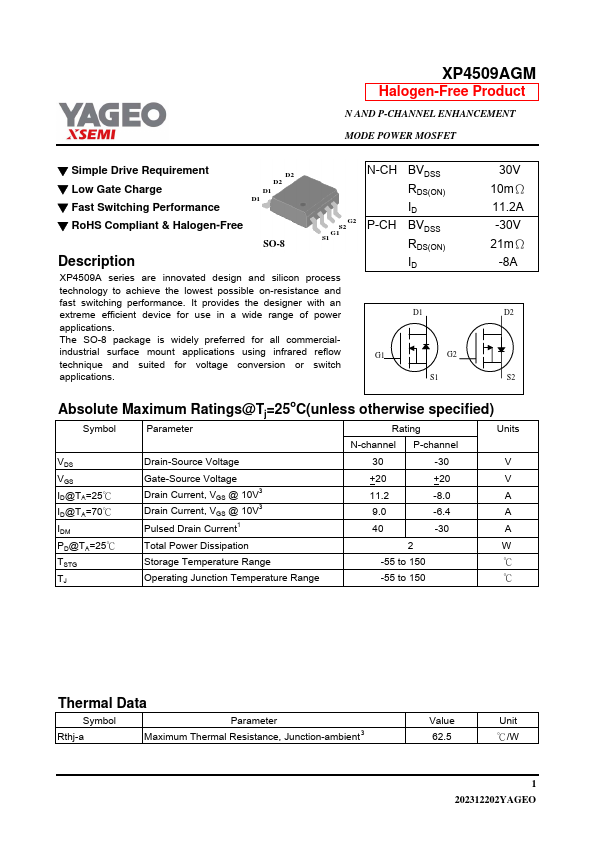

datasheet Preview Page 1 from Datasheet4u.com

XP4509AGM-YAGEO.pdf

XP4509AGM Datasheet Preview — Preview of XP4509AGM PDF

Datasheet Details

Part number:

XP4509AGM

Manufacturer:

YAGEO

File Size:

264.32 KB

Description:

N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. N-CH P-CH G1 BVDSS RDS(ON) ID BVDSS RDS(ON) ID D1 G2 S1 30V 10mΩ 11.2A -30V 21mΩ -8A D2 S2 Absolute Maximum Rati
