XP4575GM, N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

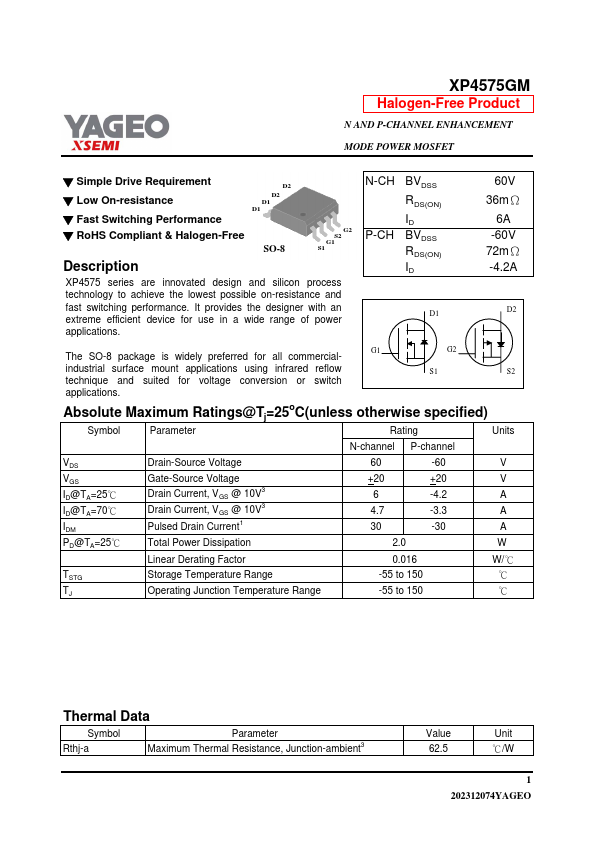

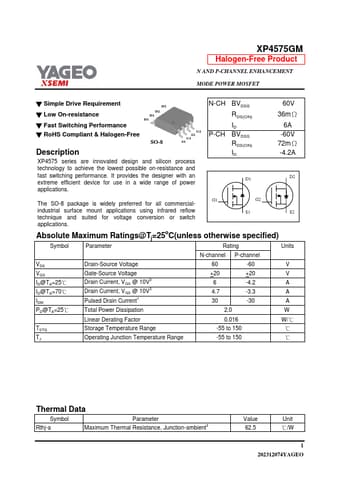

XP4575GM Halogen-Free Product N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low On-resistance ▼ Fast Switching Performan.
XP4575 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

datasheet Preview Page 1 from Datasheet4u.com

XP4575GM-YAGEO.pdf

XP4575GM Datasheet Preview — Preview of XP4575GM PDF

Datasheet Details

Part number:

XP4575GM

Manufacturer:

YAGEO

File Size:

226.73 KB

Description:

N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* N-CH P-CH BVDSS RDS(ON) ID BVDSS RDS(ON) ID D1 60V 36mΩ 6A -60V 72mΩ -4.2A D2 G1 G2 The SO-8 package is widely preferred for all commercial- industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch S1 S2 applications. Absolute Max
