XP4525GEM, N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

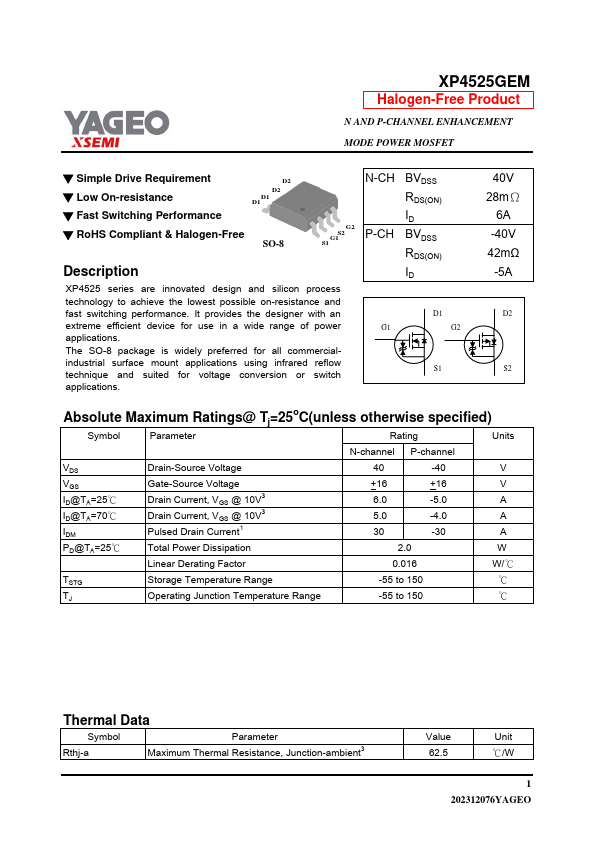

XP4525GEM Halogen-Free Product N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low On-resistance ▼ Fast Switching Performa.
XP4525 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

datasheet Preview Page 1 from Datasheet4u.com

XP4525GEM-YAGEO.pdf

XP4525GEM Datasheet Preview — Preview of XP4525GEM PDF

Datasheet Details

Part number:

XP4525GEM

Manufacturer:

YAGEO

File Size:

264.10 KB

Description:

N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. N-CH P-CH G1 BVDSS RDS(ON) ID BVDSS RDS(ON) ID D1 G2 S1 40V 28mΩ 6A -40V 42mΩ -5A D2 S2 Absolute Maximum Ratings
