XP4509GM, N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP4509GM Halogen-Free Product N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low On-resistance ▼ Fast Switching Performan.
XP4509 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

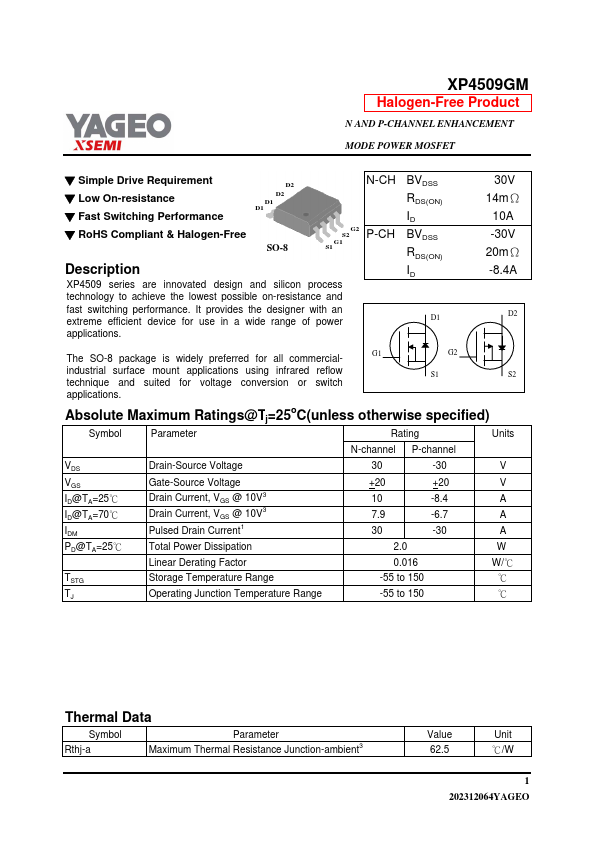

datasheet Preview Page 1 from Datasheet4u.com

XP4509GM-YAGEO.pdf

XP4509GM Datasheet Preview — Preview of XP4509GM PDF

Datasheet Details

Part number:

XP4509GM

Manufacturer:

YAGEO

File Size:

228.01 KB

Description:

N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* BVDSS RDS(ON) ID BVDSS RDS(ON) ID D1 30V 14mΩ 10A -30V 20mΩ -8.4A D2 The SO-8 package is widely preferred for all commercial- G1 G2 industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch S1 S2 applications. Absolute Maximum Rating
