XP4578GM, N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP4578GM Halogen-Free Product N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Lower Gate Charge ▼ Fast Switching Performan.
XP4578 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

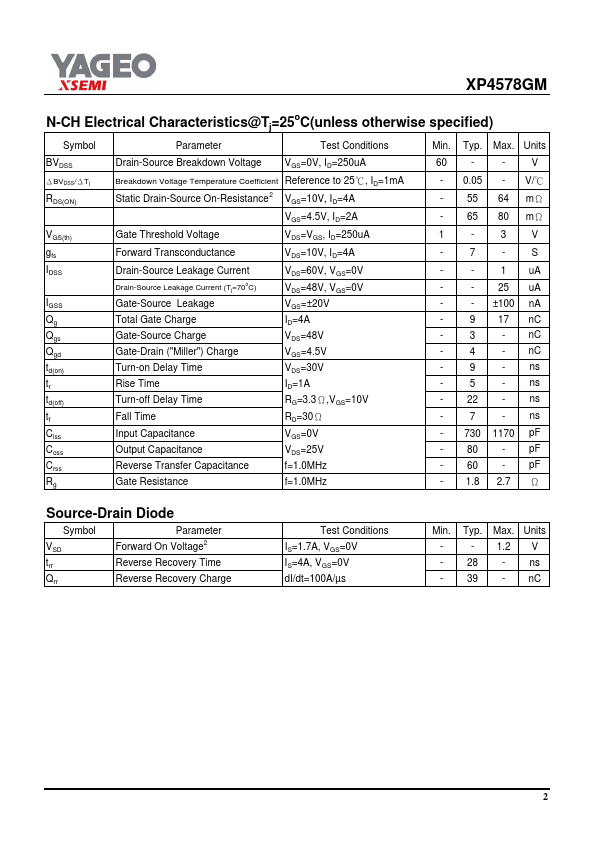

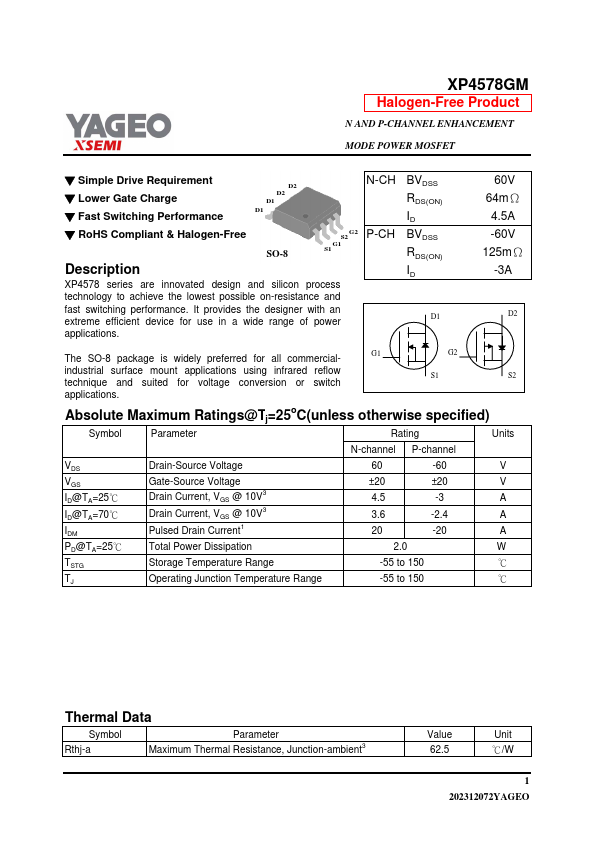

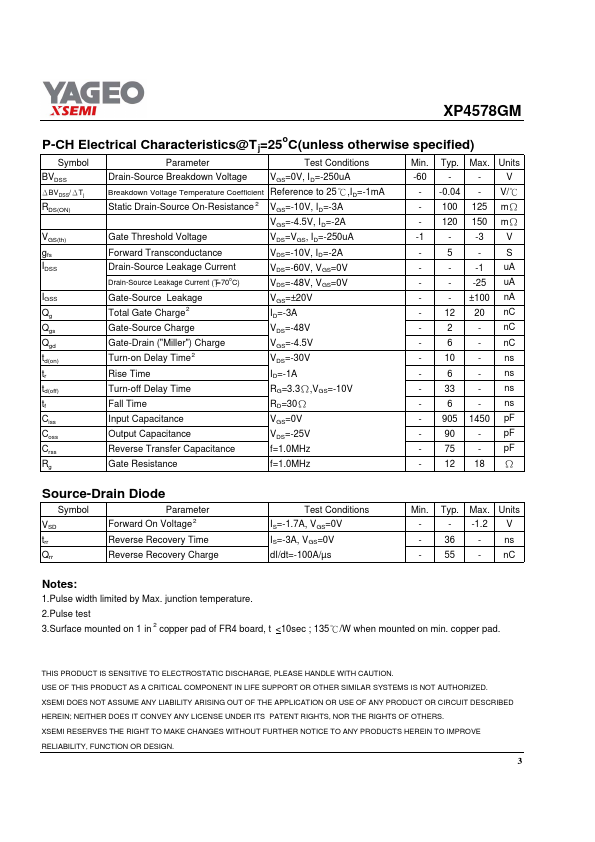

datasheet Preview Page 1 from Datasheet4u.com

XP4578GM-YAGEO.pdf

XP4578GM Datasheet Preview — Preview of XP4578GM PDF

Datasheet Details

Part number:

XP4578GM

Manufacturer:

YAGEO

File Size:

229.84 KB

Description:

N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* P-CH BVDSS RDS(ON) ID BVDSS RDS(ON) ID D1 60V 64mΩ 4.5A -60V 125mΩ -3A D2 The SO-8 package is widely preferred for all commercial- G1 G2 industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch S1 S2 applications. Absolute Maximum
