XP4800GEM N-CHANNEL ENHANCEMENT MODE POWER MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

XP4800GEM Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Fast Switching Characteristic ▼ Low On-resistance.
XP4800 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

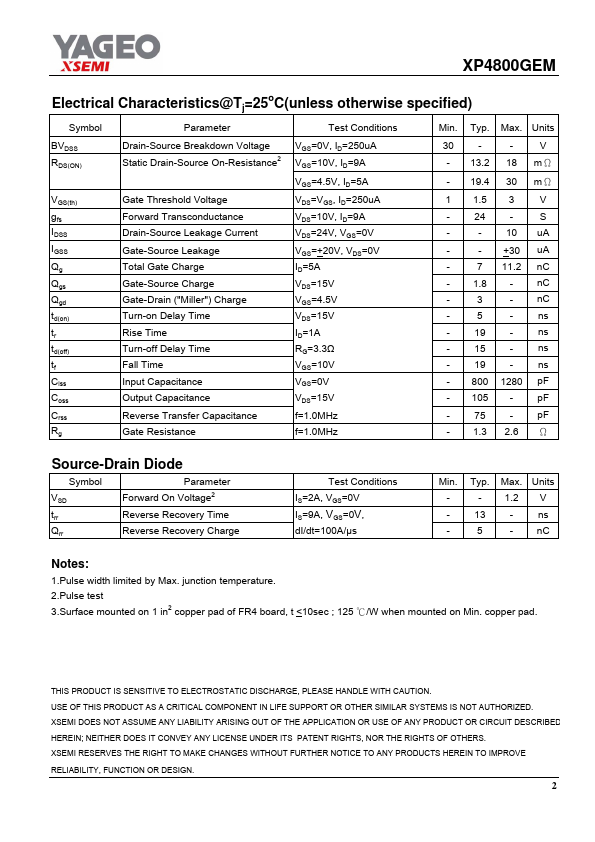

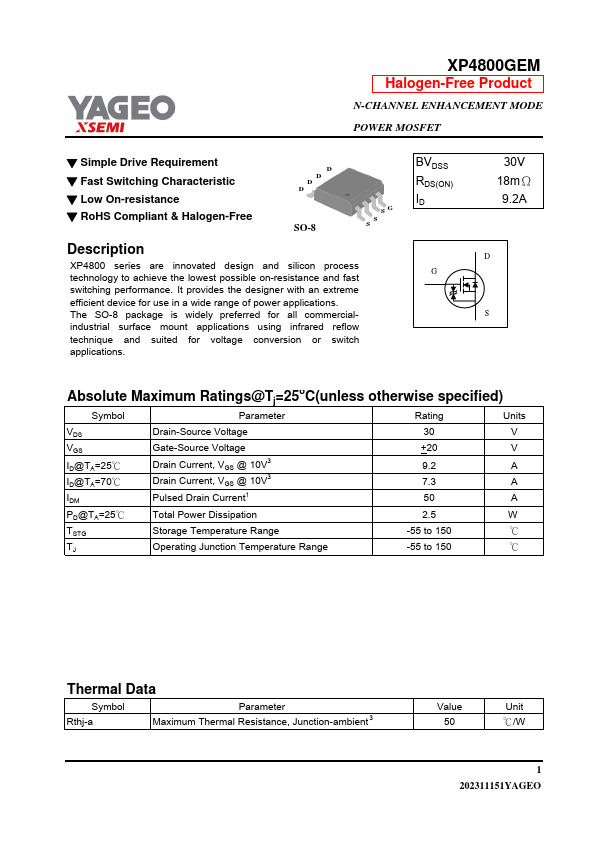

Preview of XP4800GEM PDF

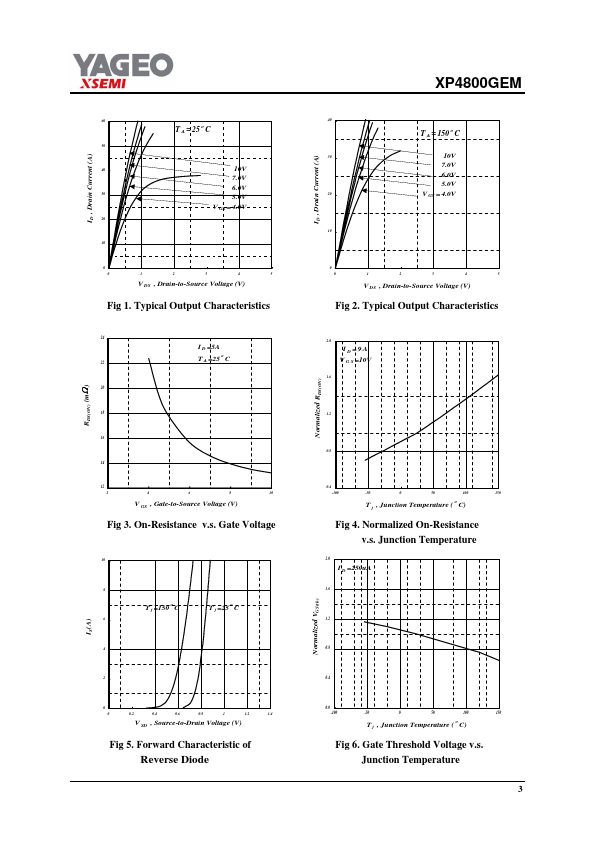

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP4800GEM
Manufacturer
YAGEO
File Size
248.08 KB
Datasheet
XP4800GEM-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID G 30V 18mΩ 9.2A D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parame
