XP4804MT DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP4804MT Halogen-Free Product DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D1 CH-1 BVDSS 40V ▼ Easy for Synchronous Buc.
XP4804 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

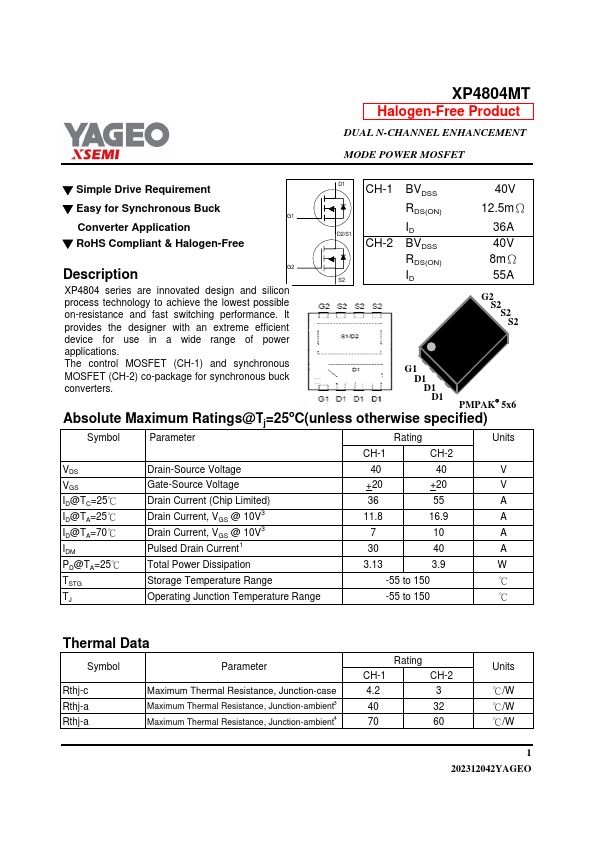

XP4804MT Datasheet Preview — Preview of XP4804MT PDF

Datasheet Specifications

Part number: XP4804MT
Manufacturer: YAGEO
File Size: 503.84 KB
Datasheet: XP4804MT-YAGEO.pdf
Description: DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The control MOSFET (CH-1) and synchronous G1 MOSFET (CH-2) co-package for synchronous buck D1 converters. D1 D1 PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units CH-1 CH-2 VDS Drain-Source Voltage 40 40 V VGS Gate-Source Volta
