XP4P013LEP P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP4P013LEP Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low On-resistance D ▼ Simple Drive Requirement ▼ Fast Switching Characte.
XP4P013LE series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

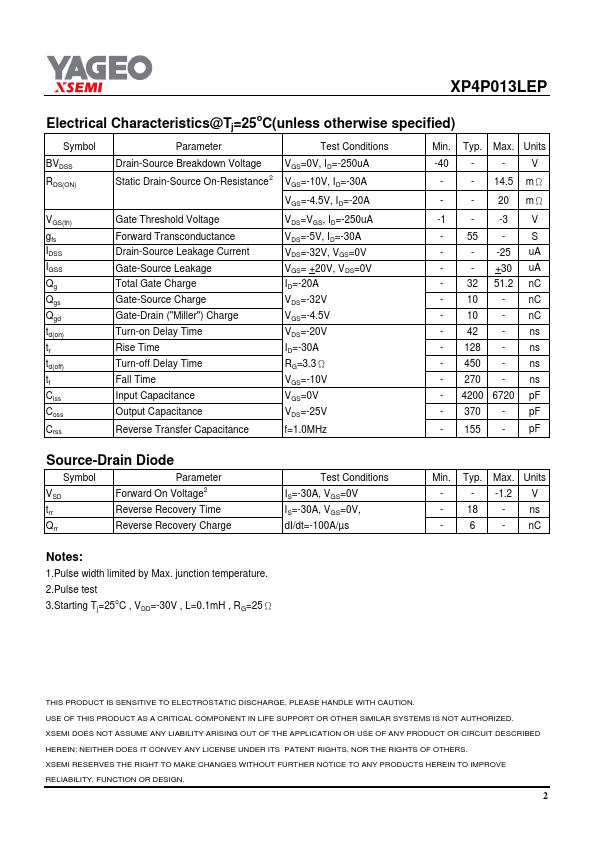

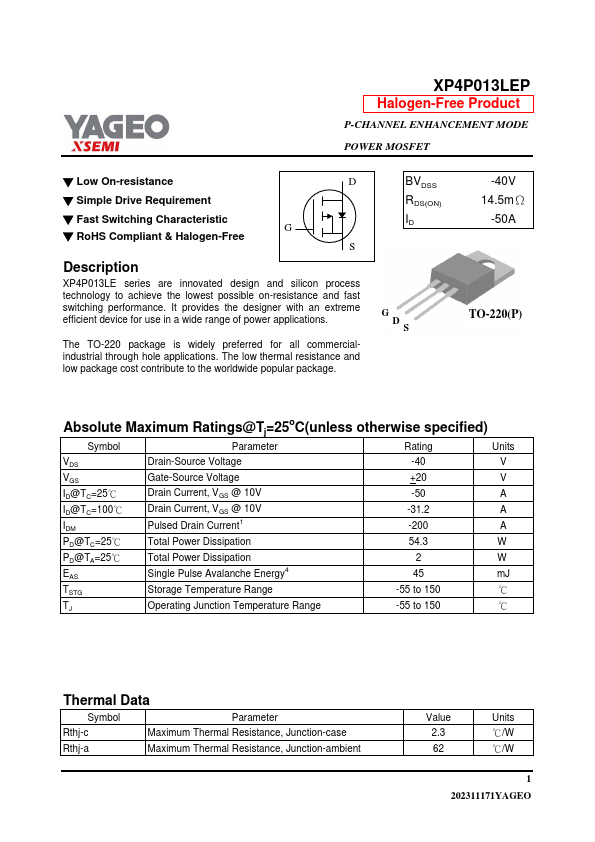

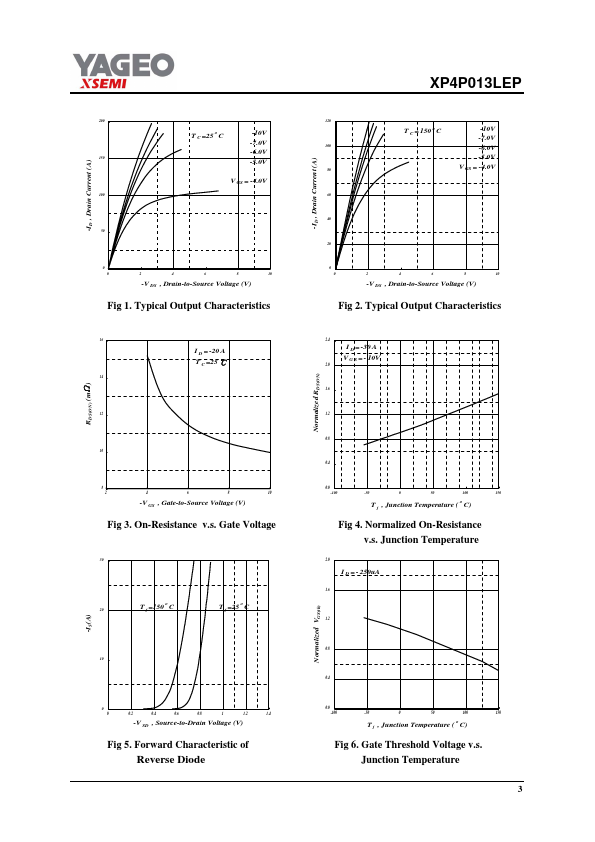

XP4P013LEP Datasheet Preview — Preview of XP4P013LEP PDF

Datasheet Specifications

Part number: XP4P013LEP
Manufacturer: YAGEO
File Size: 153.07 KB
Datasheet: XP4P013LEP-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220 package is widely preferred for all commercialindustrial through hole applications. The low thermal resistance and low package cost contribute to the worldwide popular package. BVDSS RDS(ON) ID G D S -40V 14.5mΩ -50A TO-220(P) Absolute Maximum Ratings@Tj=25oC(unless otherwise specifi
