XP4P016I P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP4P016I Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characteristic.
XP4P016 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

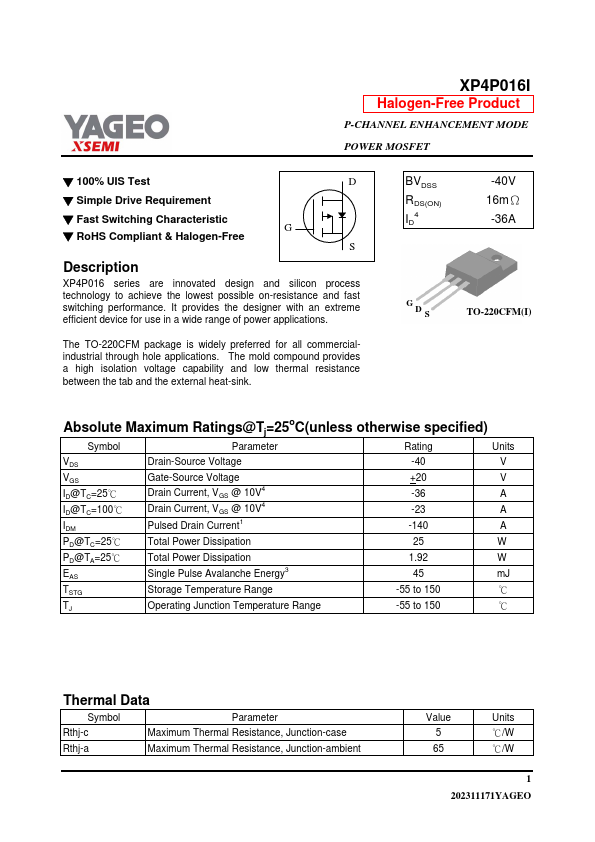

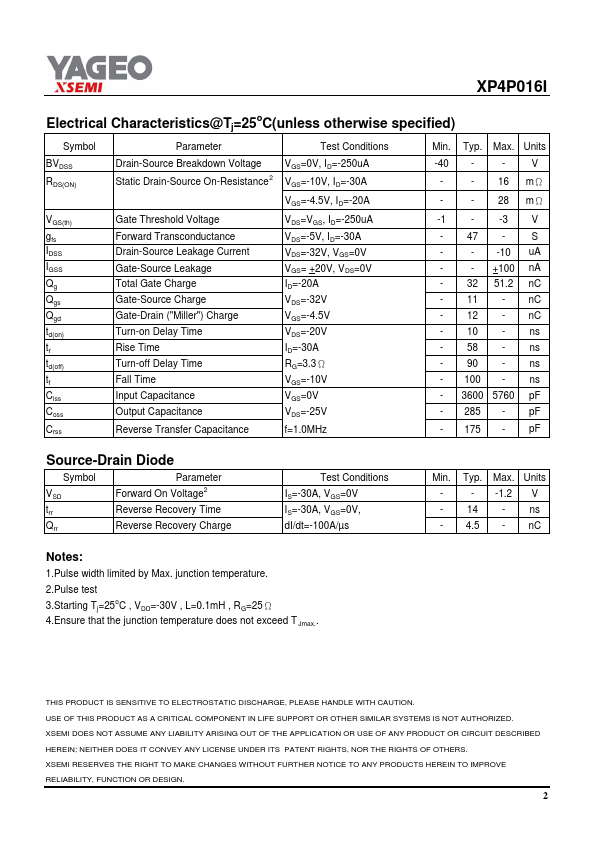

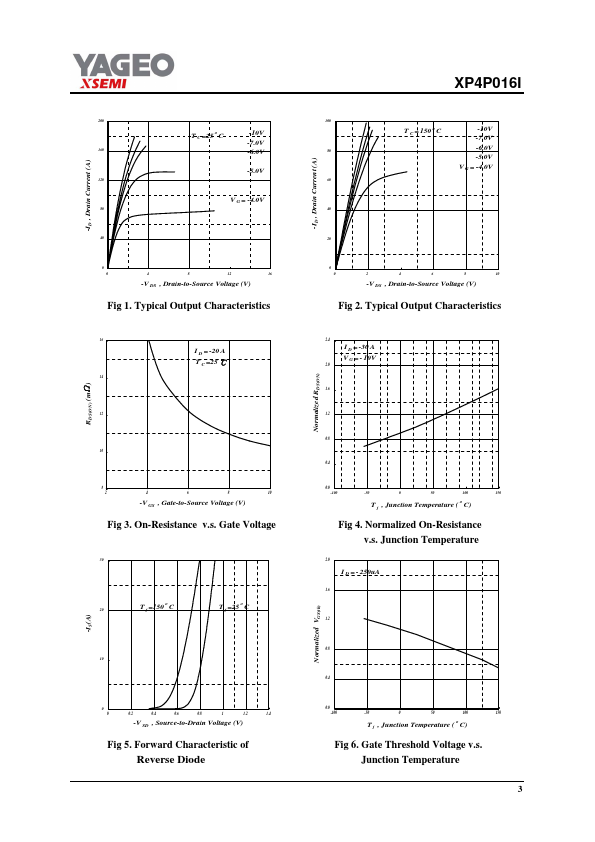

XP4P016I Datasheet Preview — Preview of XP4P016I PDF

Datasheet Specifications

Part number: XP4P016I
Manufacturer: YAGEO
File Size: 217.94 KB
Datasheet: XP4P016I-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID4 -40V 16mΩ -36A GD S TO-220CFM(I) Absolute M
