XP4P013LES P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP4P013LES Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low On-resistance D ▼ Simple Drive Requirement ▼ Fast Switching Characte.
XP4P013LE series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

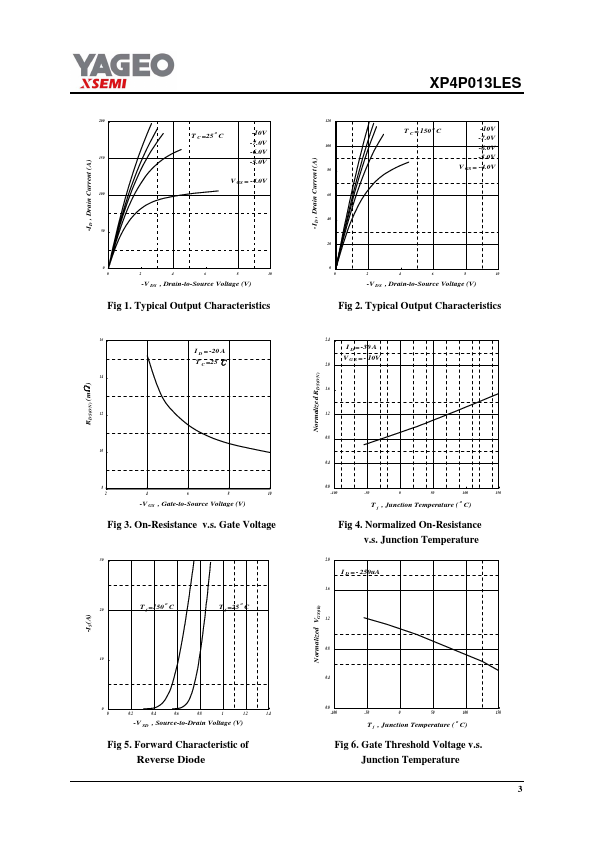

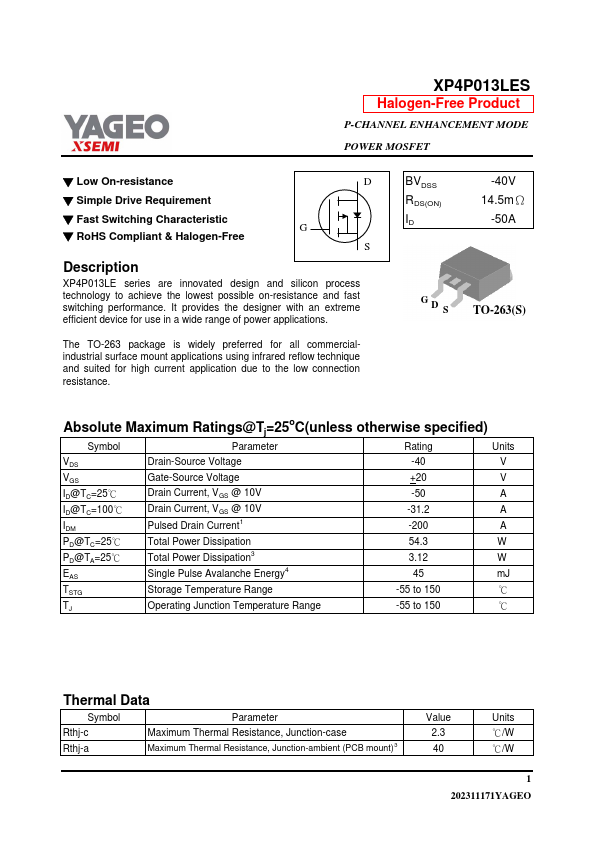

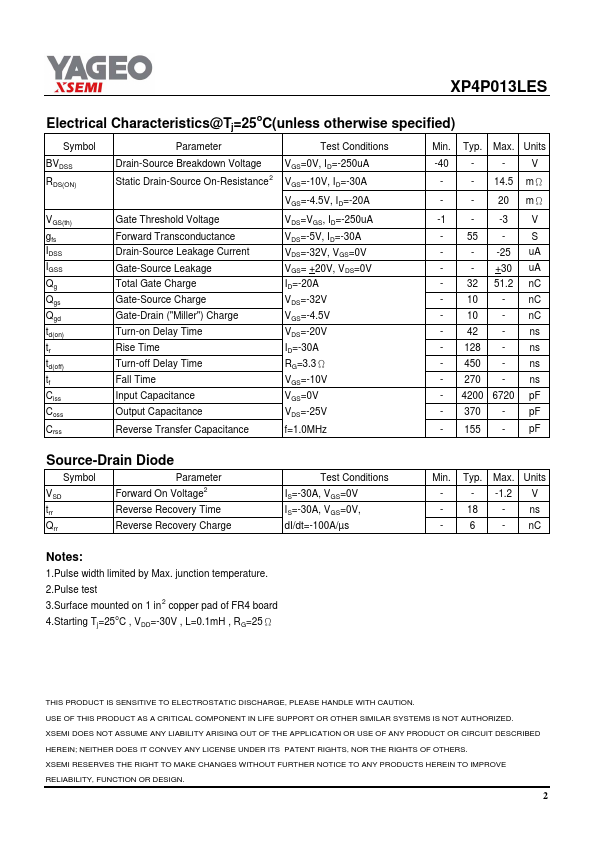

XP4P013LES Datasheet Preview — Preview of XP4P013LES PDF

Datasheet Specifications

Part number: XP4P013LES
Manufacturer: YAGEO
File Size: 260.20 KB
Datasheet: XP4P013LES-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-263 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID -40V 14.5mΩ -50A GD S TO-263(S) Absolute Maximum Ratings@Tj=25oC(unless
