XP60AN4K8H N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60AN4K8H Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characterist.
XP60AN4K8 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

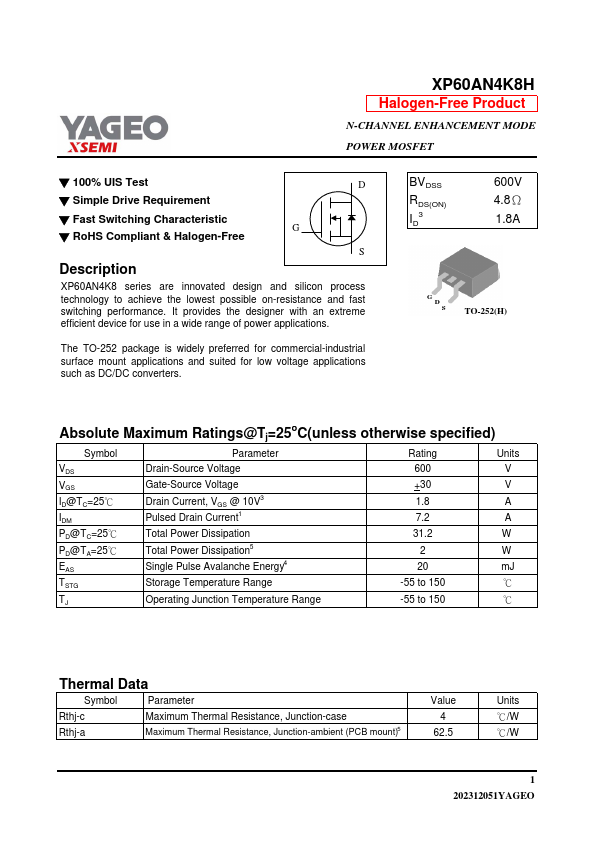

XP60AN4K8H Datasheet Preview — Preview of XP60AN4K8H PDF

Datasheet Specifications

Part number: XP60AN4K8H
Manufacturer: YAGEO
File Size: 173.02 KB
Datasheet: XP60AN4K8H-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID3 600V 4.8Ω 1.8A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Ratin
