XP60CM190EDT8 N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60CM190EDT8 Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test ▼ Fast Switching Characteristic ▼ Simple Drive Requir.
Pin 1 Gate Pin 2 Driver Source Pin 5 Drain BVDSS RDS(ON) ID3,4 Pin 3,4 Power Source Top View XP60CM190E series are innovated design and silicon.

📥 Download Datasheet

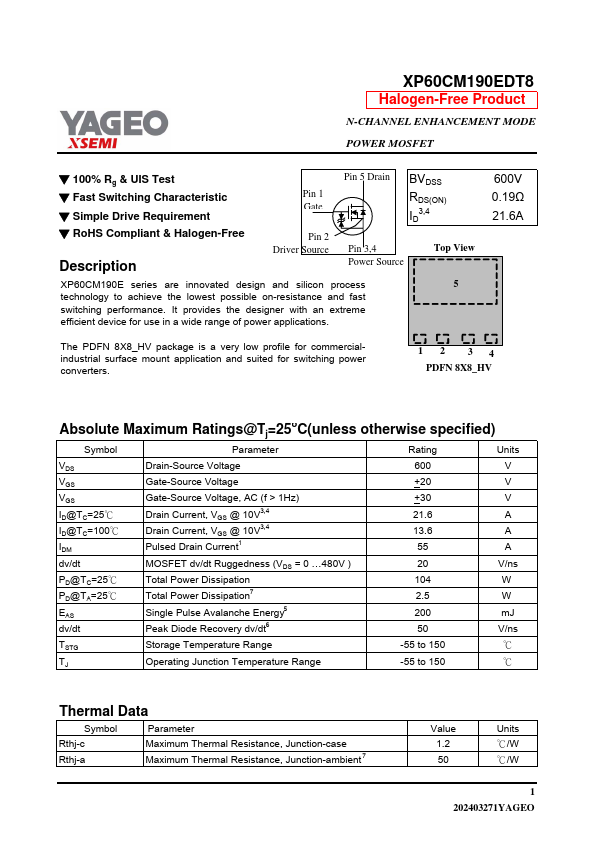

XP60CM190EDT8 Datasheet Preview — Preview of XP60CM190EDT8 PDF

Datasheet Specifications

Part number: XP60CM190EDT8
Manufacturer: YAGEO
File Size: 206.72 KB
Datasheet: XP60CM190EDT8-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* 600V 0.19Ω 21.6A The PDFN 8X8_HV package is a very low profile for commercialindustrial surface mount application and suited for switching power converters. 12 34 PDFN 8X8_HV Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS VGS ID@TC=25℃ ID
