XP60CM190EH N-CHANNEL ENHANCEMENT MODE POWER MOSFET

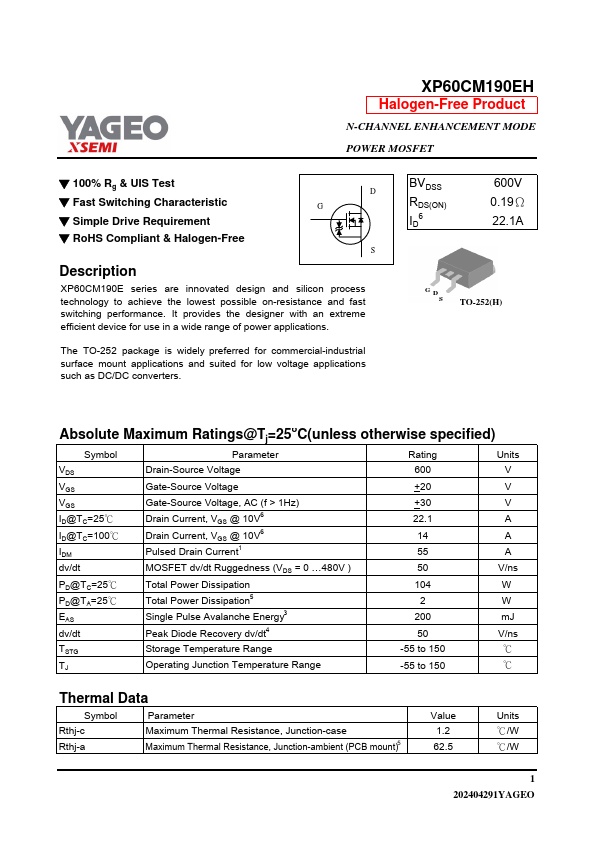

📥 Download Datasheet  Datasheet Preview Page 1

Description

XP60CM190EH Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test ▼ Fast Switching Characteristic ▼ Simple Drive Requirem.
XP60CM190E series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

Preview of XP60CM190EH PDF

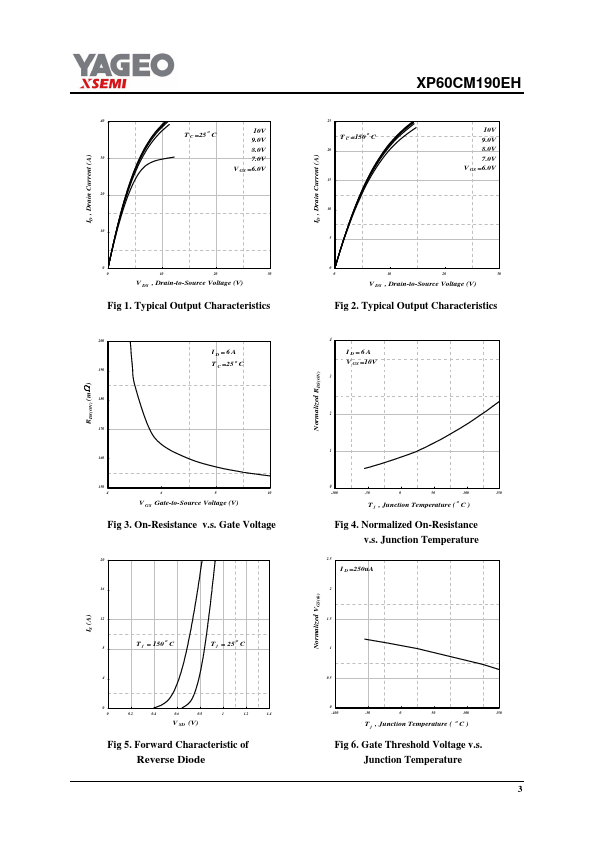

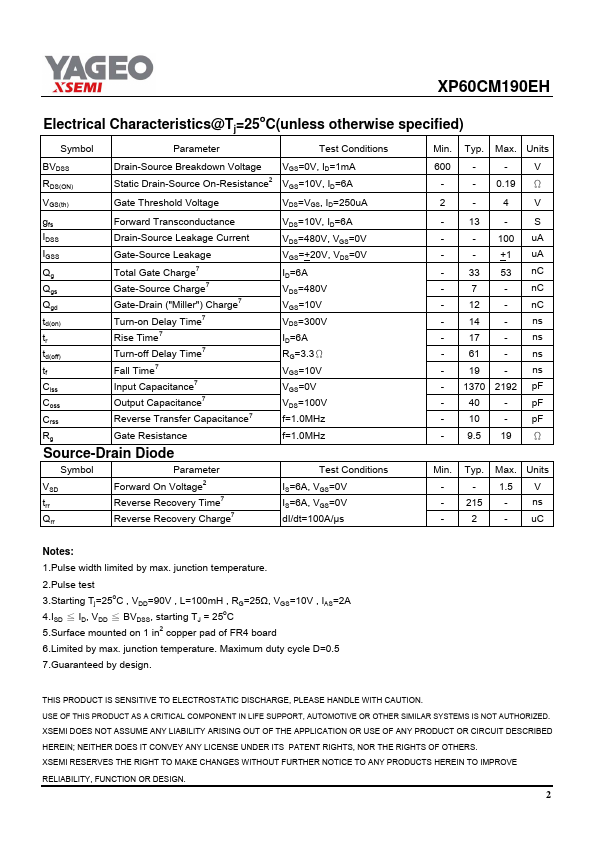

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP60CM190EH
Manufacturer
YAGEO
File Size
214.50 KB
Datasheet
XP60CM190EH-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID6 600V 0.19Ω 22.1A GD S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rati
