XP6679GH P-CHANNEL ENHANCEMENT MODE POWER MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

XP6679GH Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Lower On-resistance D ▼ Simple Drive Requirement ▼ Fast Switching Characte.
XP6679 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

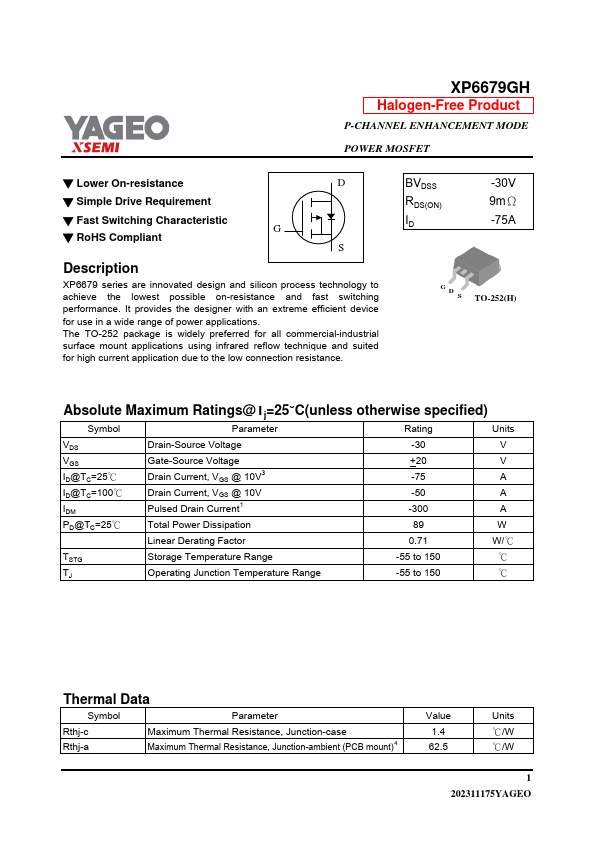

Preview of XP6679GH PDF

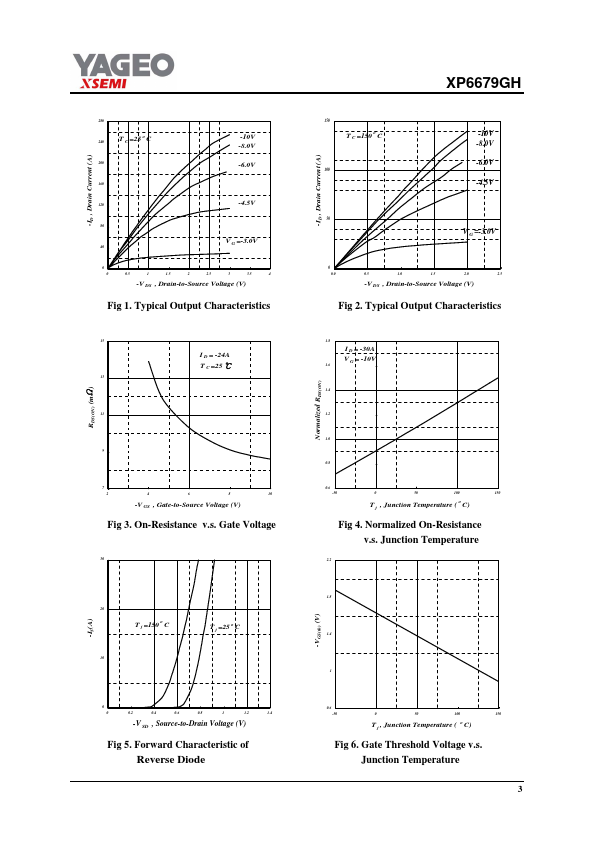

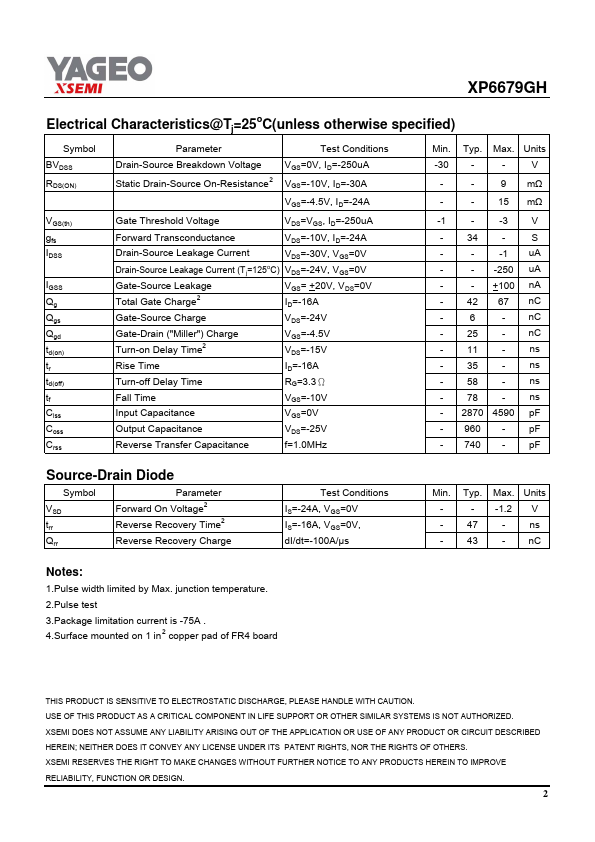

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP6679GH
Manufacturer
YAGEO
File Size
211.06 KB
Datasheet
XP6679GH-YAGEO.pdf
Description
P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID -30V 9mΩ -75A GD S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless oth
