XP6N090LK N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP6N090LK Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Lower Gate Charge ▼ Fast Switching Characteristic.
XP6N090L series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

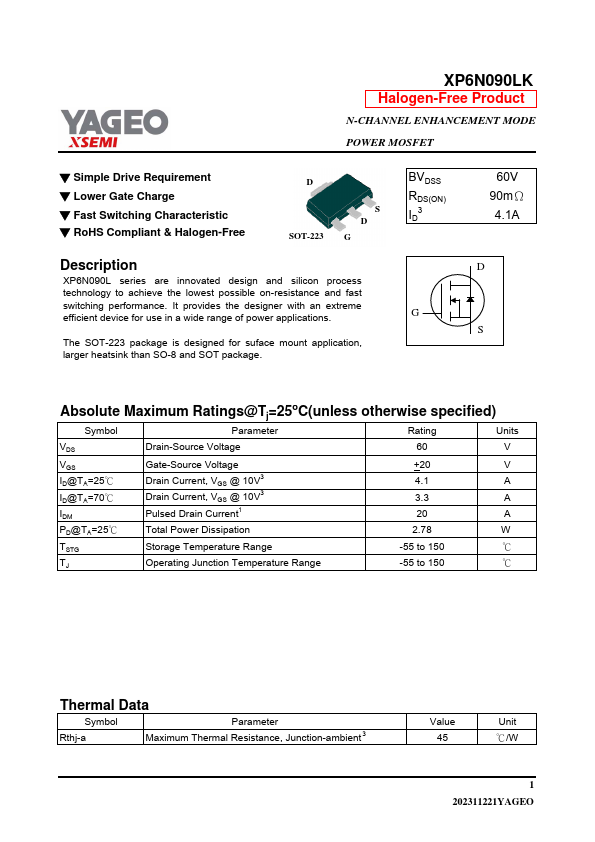

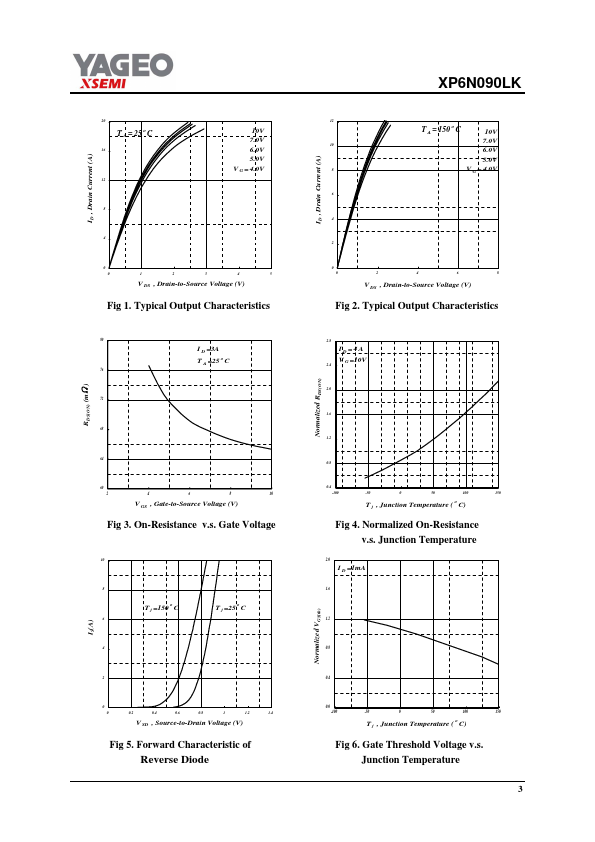

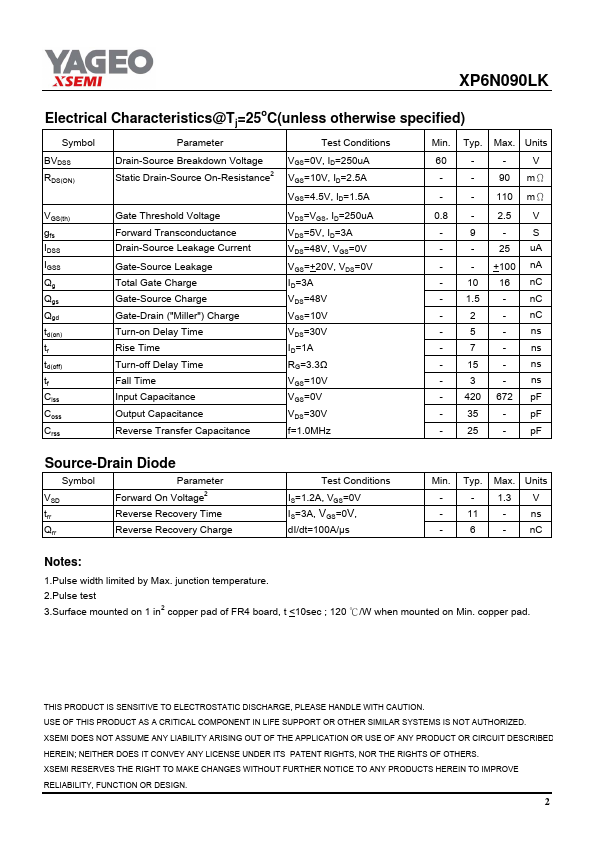

XP6N090LK Datasheet Preview — Preview of XP6N090LK PDF

Datasheet Specifications

Part number: XP6N090LK
Manufacturer: YAGEO
File Size: 191.15 KB
Datasheet: XP6N090LK-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SOT-223 package is designed for suface mount application, larger heatsink than SO-8 and SOT package. BVDSS RDS(ON) ID3 G 60V 90mΩ 4.1A D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS Drain-Source Voltage 60 V VGS ID@TA=25℃ ID@TA=70℃
