Datasheet Specifications
- Part number
- XP6N6R5MT
- Manufacturer
- YAGEO
- File Size
- 322.37 KB
- Datasheet
- XP6N6R5MT-YAGEO.pdf
- Description
- N-CHANNEL ENHANCEMENT MODE POWER MOSFET
Description

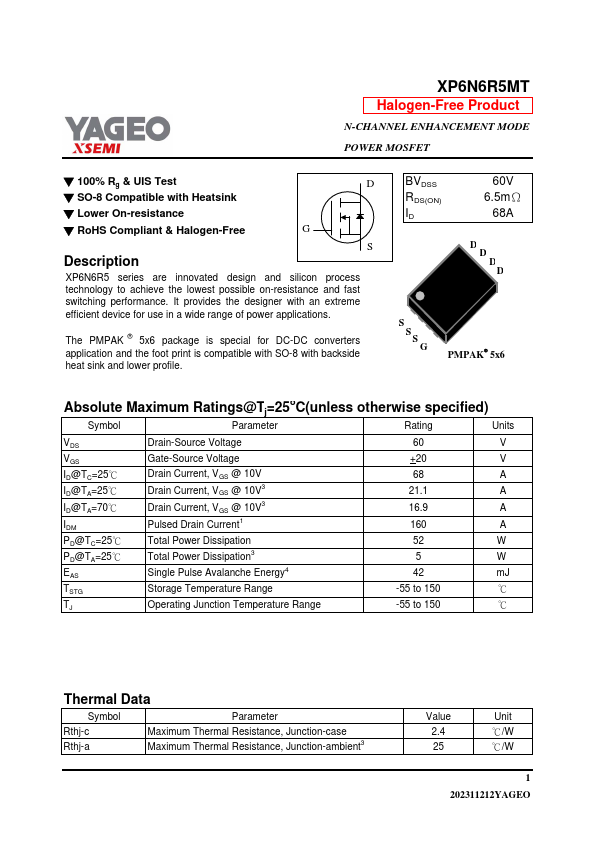

XP6N6R5MT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ SO-8 Compatible with Heatsink ▼ Lower On-resistanc.
Applications
* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) ID 60V 6.5mΩ 68A D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol ParameterXP6N6R5MT Distributors
