XP6N6R8ALH N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP6N6R8ALH Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Charact.
XP6N6R8AL series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

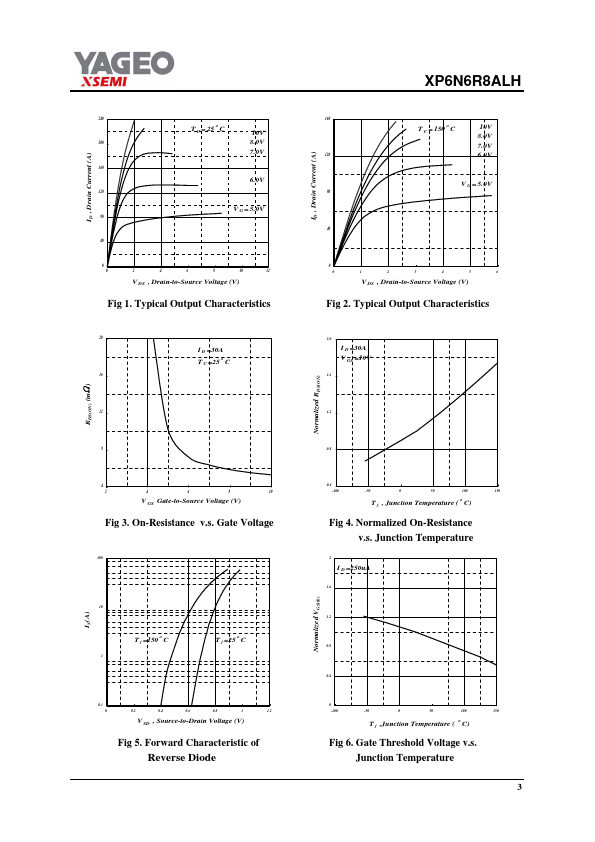

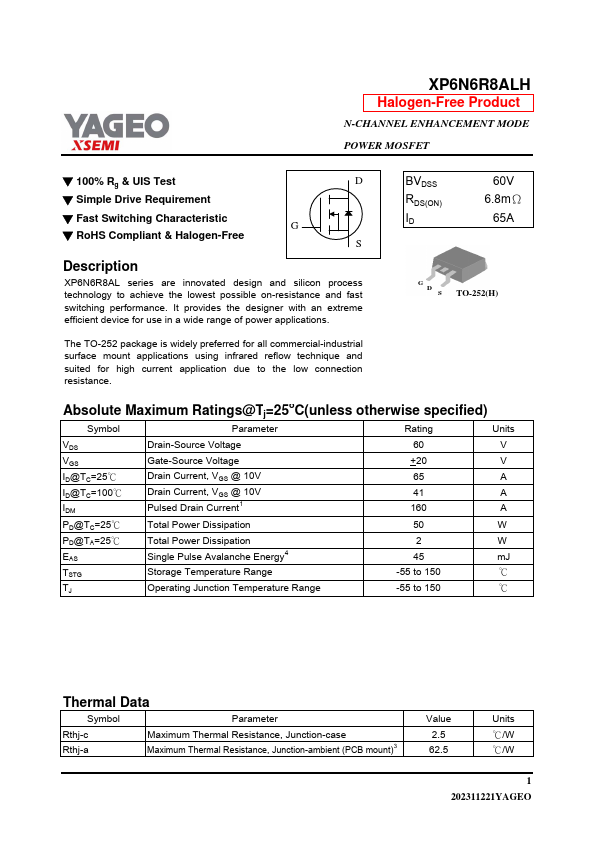

XP6N6R8ALH Datasheet Preview — Preview of XP6N6R8ALH PDF

Datasheet Specifications

Part number: XP6N6R8ALH
Manufacturer: YAGEO
File Size: 215.82 KB
Datasheet: XP6N6R8ALH-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* BVDSS RDS(ON) ID 60V 6.8mΩ 65A G D S TO-252(H) The TO-252 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. Absolute Maximum Ratings@Tj=25oC(unless
