XP9120GH P-CHANNEL ENHANCEMENT MODE POWER MOSFET

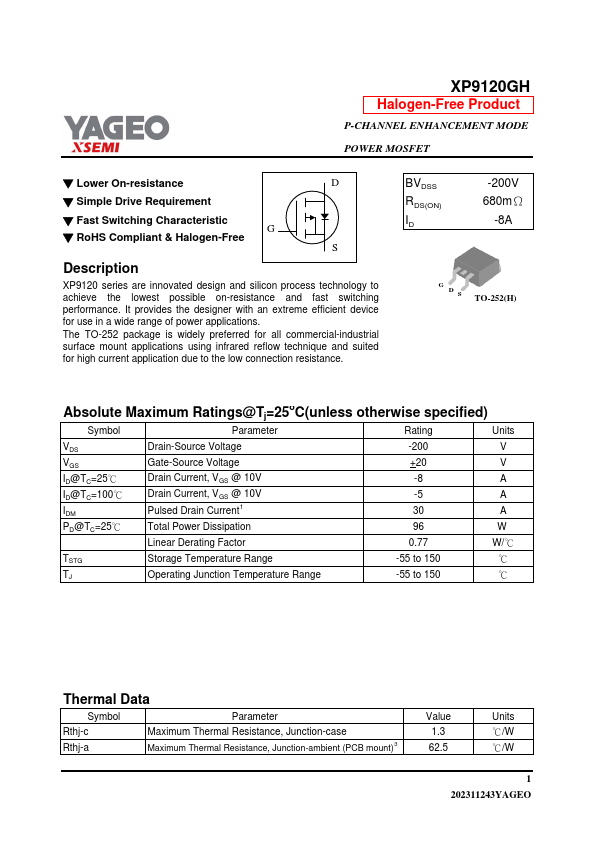

📥 Download Datasheet  Datasheet Preview Page 1

Description

XP9120GH Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Lower On-resistance D ▼ Simple Drive Requirement ▼ Fast Switching Characte.
XP9120 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

Preview of XP9120GH PDF

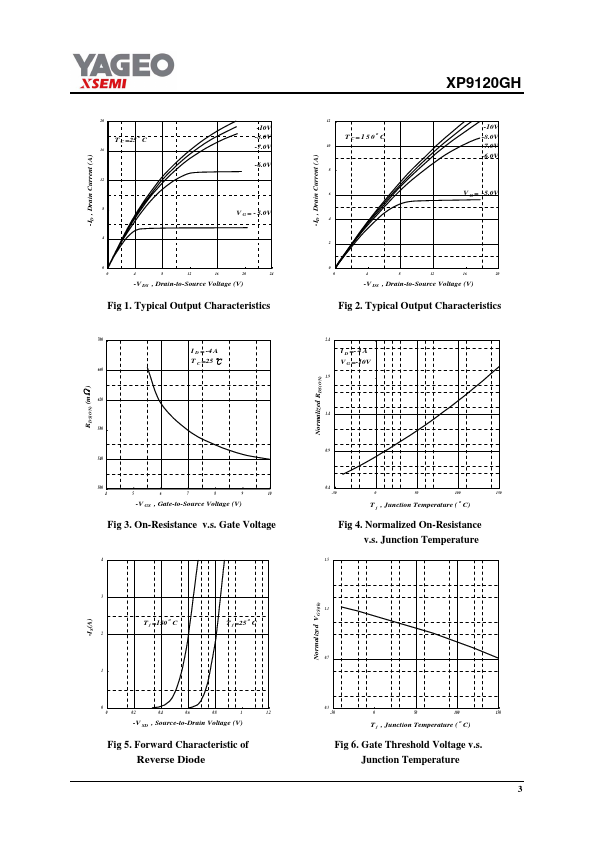

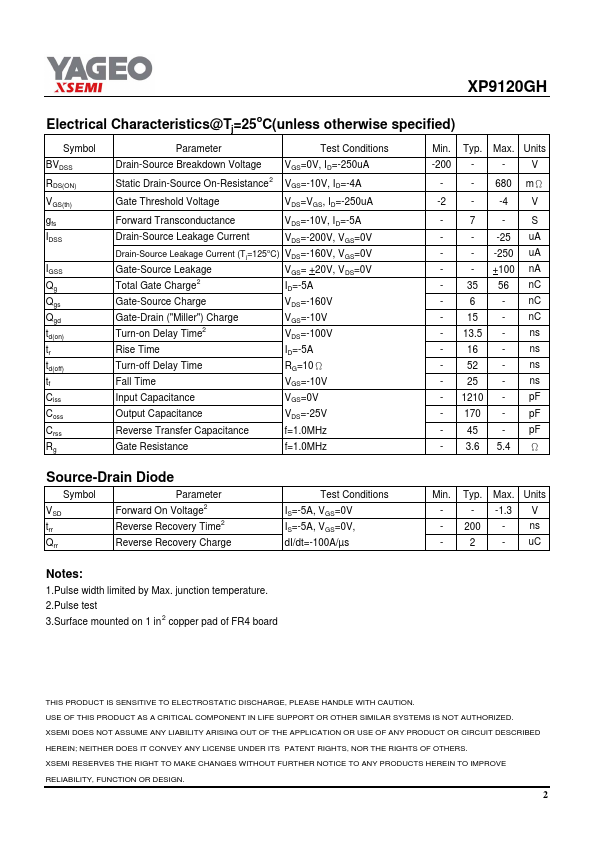

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP9120GH
Manufacturer
YAGEO
File Size
174.22 KB
Datasheet
XP9120GH-YAGEO.pdf
Description
P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID -200V 680mΩ -8A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless
