XP93T03AGH N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

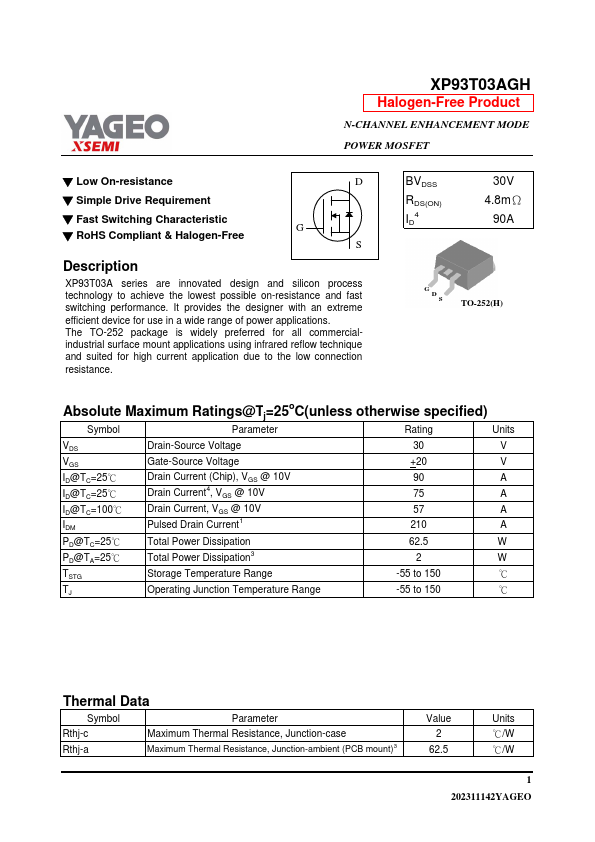

XP93T03AGH Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low On-resistance D ▼ Simple Drive Requirement ▼ Fast Switching Characte.
XP93T03A series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

XP93T03AGH Datasheet Preview — Preview of XP93T03AGH PDF

Datasheet Specifications

Part number: XP93T03AGH
Manufacturer: YAGEO
File Size: 175.39 KB
Datasheet: XP93T03AGH-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID4 30V 4.8mΩ 90A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless o
