XP92T03GP N-CHANNEL ENHANCEMENT MODE POWER MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

XP92T03GP Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Lower On-resistance ▼ Fast Switching Characterist.
XP92T03 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

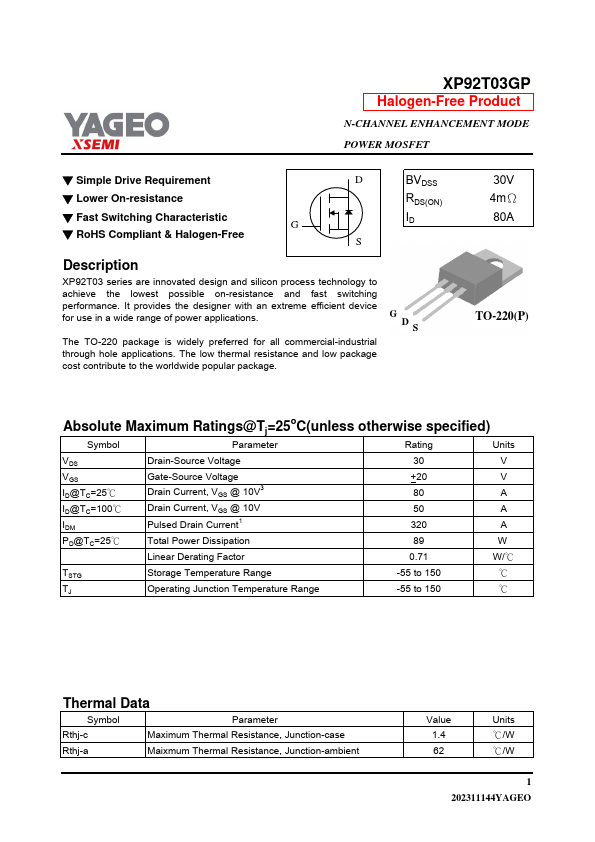

Preview of XP92T03GP PDF

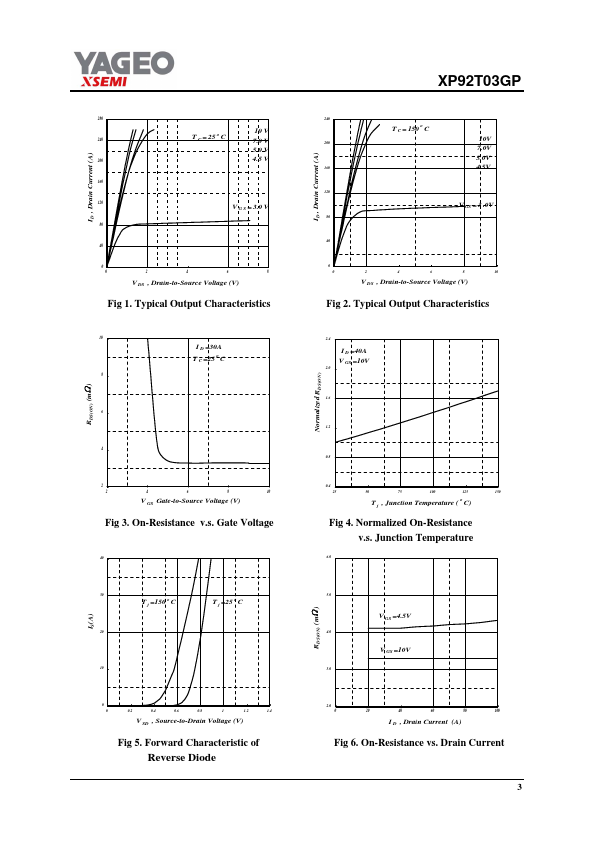

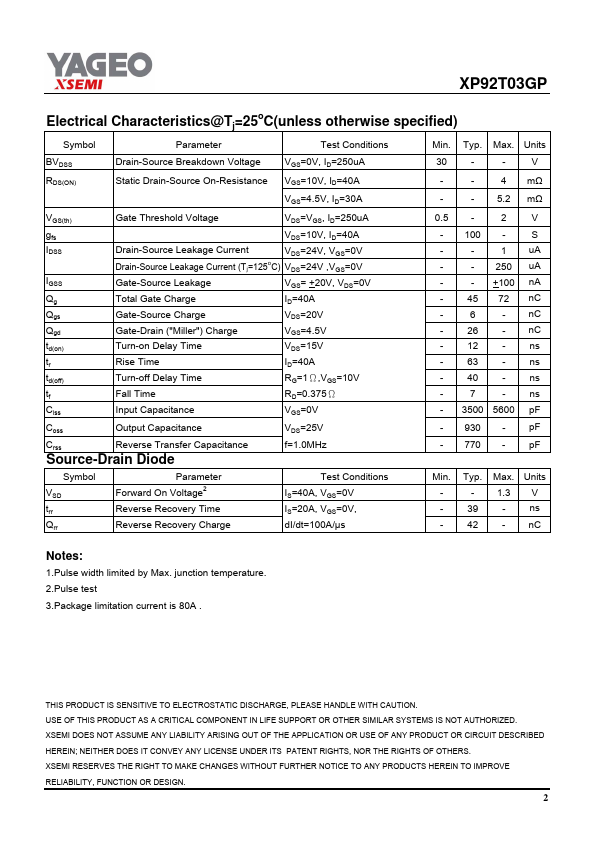

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP92T03GP
Manufacturer
YAGEO
File Size
184.01 KB
Datasheet
XP92T03GP-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220 package is widely preferred for all commercial-industrial through hole applications. The low thermal resistance and low package cost contribute to the worldwide popular package. G DS 30V 4mΩ 80A TO-220(P) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter
