XP9561GH, P-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP9561GH Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Lower On-resistance D ▼ Simple Drive Requirement ▼ Fast Switching Characte.
XP9561 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

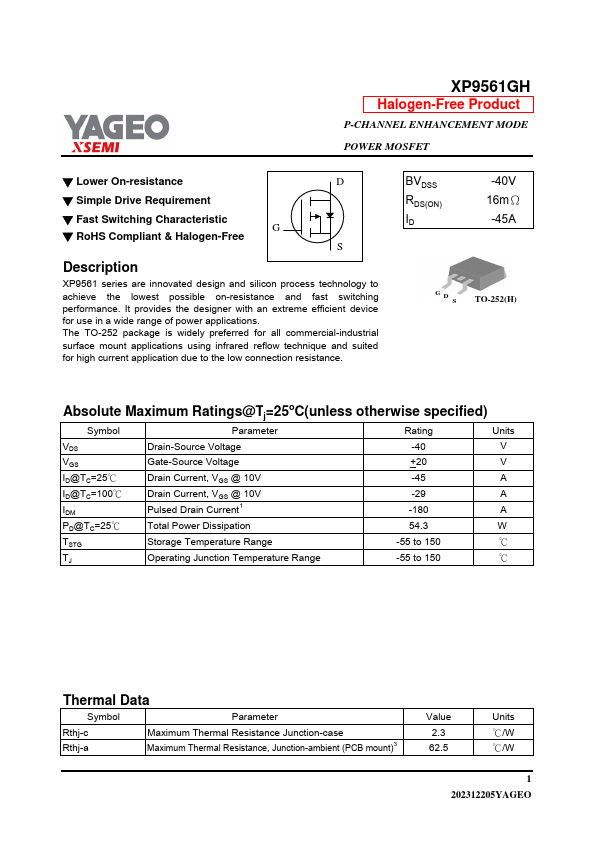

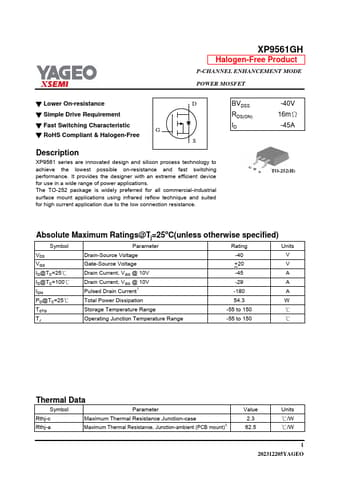

datasheet Preview Page 1 from Datasheet4u.com

XP9561GH-YAGEO.pdf

XP9561GH Datasheet Preview — Preview of XP9561GH PDF

Datasheet Details

Part number:

XP9561GH

Manufacturer:

YAGEO

File Size:

209.14 KB

Description:

P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID -40V 16mΩ -45A GD S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless o
