XP9565GEM Datasheet - YAGEO

XP9565GEM, P-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP9565GEM Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Lower Gate Charge ▼ Fast Switching Characteristic.
XP9565 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

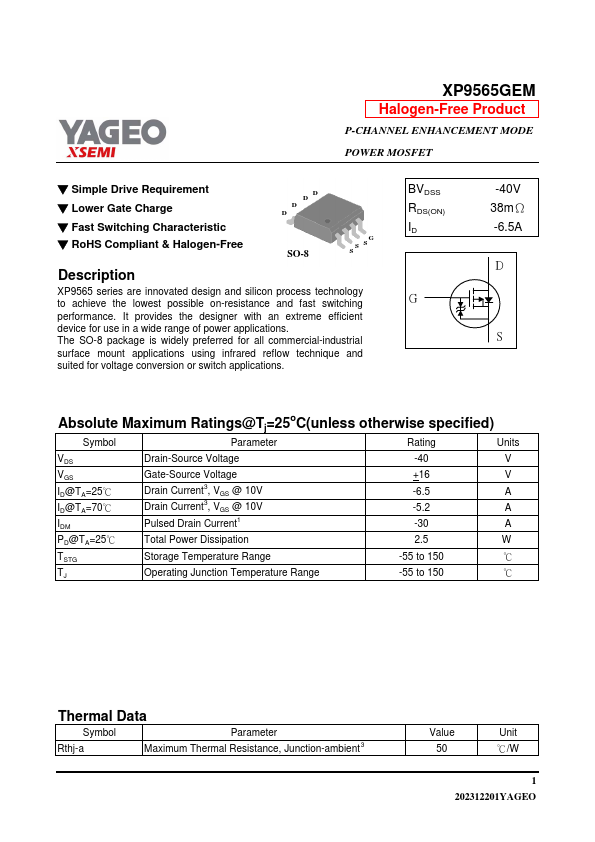

datasheet Preview Page 1 from Datasheet4u.com

XP9565GEM-YAGEO.pdf

XP9565GEM Datasheet Preview — Preview of XP9565GEM PDF

Datasheet Details

Part number:

XP9565GEM

Manufacturer:

YAGEO

File Size:

204.48 KB

Description:

P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID G -40V 38mΩ -6.5A D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Par
