XP9561GI Datasheet - YAGEO

XP9561GI, P-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP9561GI Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Lower Gate Charge D ▼ Simple Drive Requirement ▼ Fast Switching Characteri.
XP9561 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

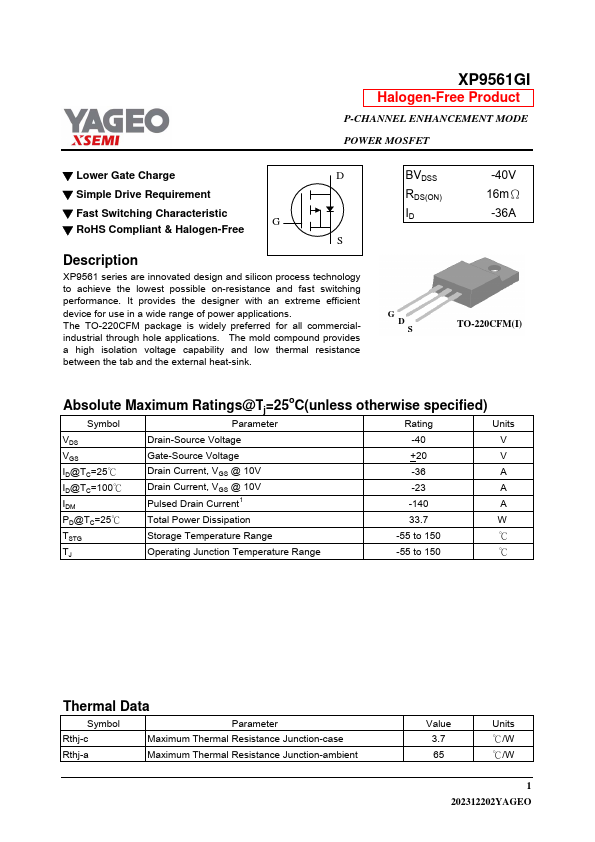

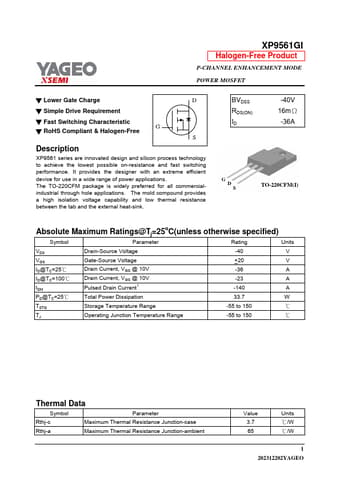

datasheet Preview Page 1 from Datasheet4u.com

XP9561GI-YAGEO.pdf

XP9561GI Datasheet Preview — Preview of XP9561GI PDF

Datasheet Details

Part number:

XP9561GI

Manufacturer:

YAGEO

File Size:

248.78 KB

Description:

P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID -40V 16mΩ -36A G D S TO-220CFM(I) Absolute Ma
