XP9565BGH Datasheet - YAGEO

XP9565BGH, P-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP9565BGH Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Lower Gate Charge D ▼ Simple Drive Requirement ▼ Fast Switching Character.
XSemi MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and costeffectiveness.

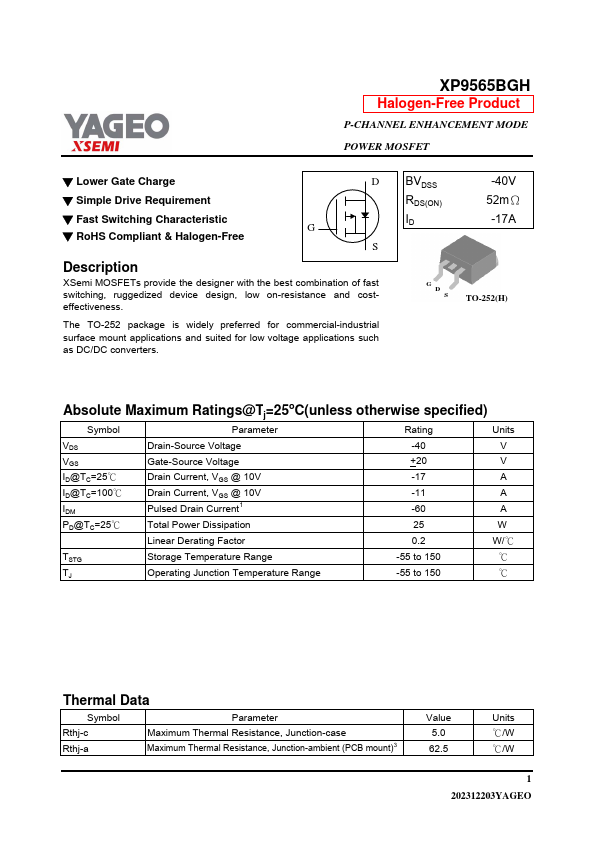

datasheet Preview Page 1 from Datasheet4u.com

XP9565BGH-YAGEO.pdf

XP9565BGH Datasheet Preview — Preview of XP9565BGH PDF

Datasheet Details

Part number:

XP9565BGH

Manufacturer:

YAGEO

File Size:

209.78 KB

Description:

P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID -40V 52mΩ -17A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TC=25℃ ID@TC=100℃ IDM PD@TC=25℃ Drain-Source Voltage Gate-Source Voltage
