XP9561GM Datasheet - YAGEO

XP9561GM, P-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP9561GM Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Lower Gate Charge ▼ Fast Switching Characteristic .
XP9561 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

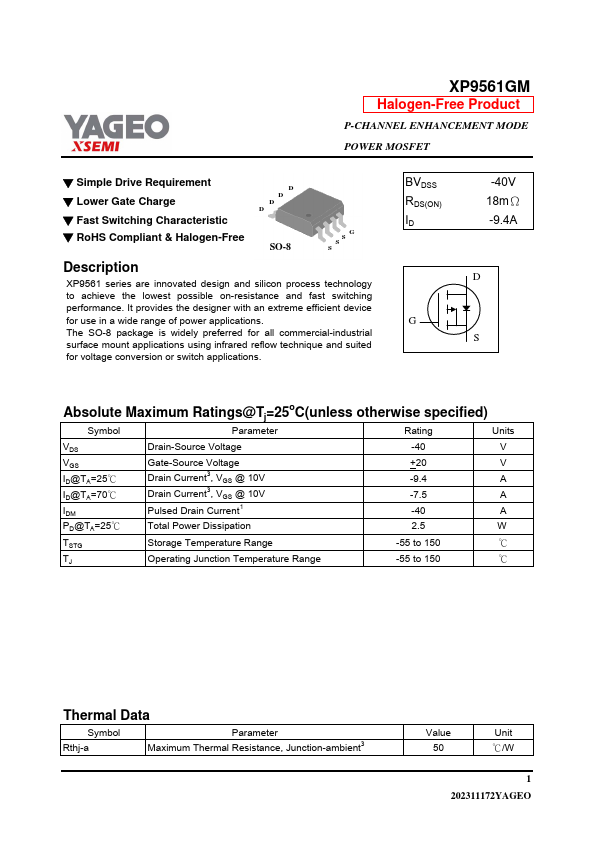

datasheet Preview Page 1 from Datasheet4u.com

XP9561GM-YAGEO.pdf

XP9561GM Datasheet Preview — Preview of XP9561GM PDF

Datasheet Details

Part number:

XP9561GM

Manufacturer:

YAGEO

File Size:

239.55 KB

Description:

P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID -40V 18mΩ -9.4A D G S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Pa
