XP9575AGI P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP9575AGI Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Lower Gate Charge D ▼ Simple Drive Requirement ▼ Fast Switching Character.
XP9575A series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

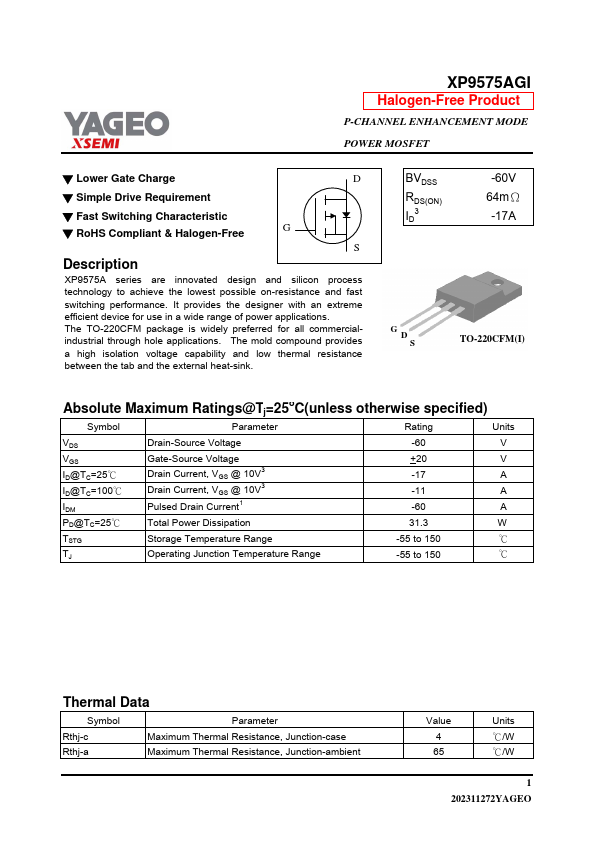

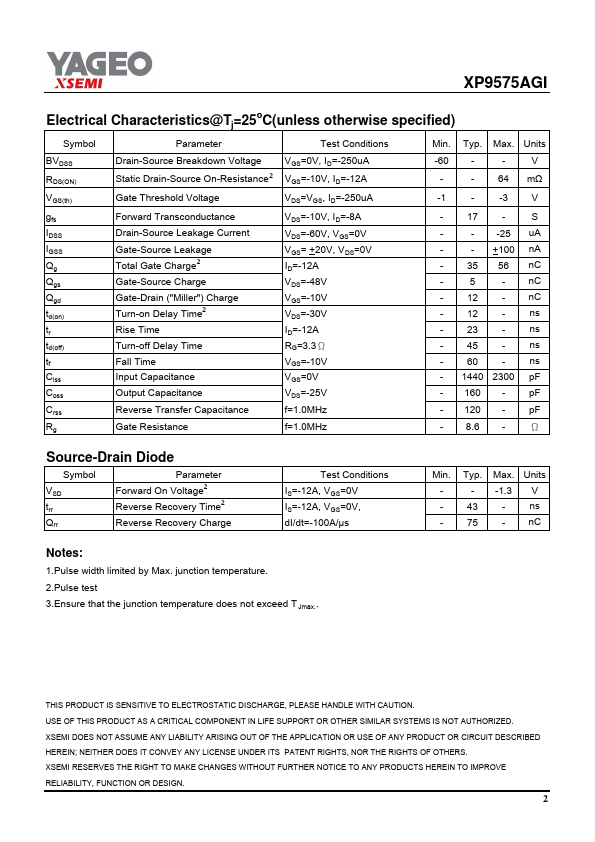

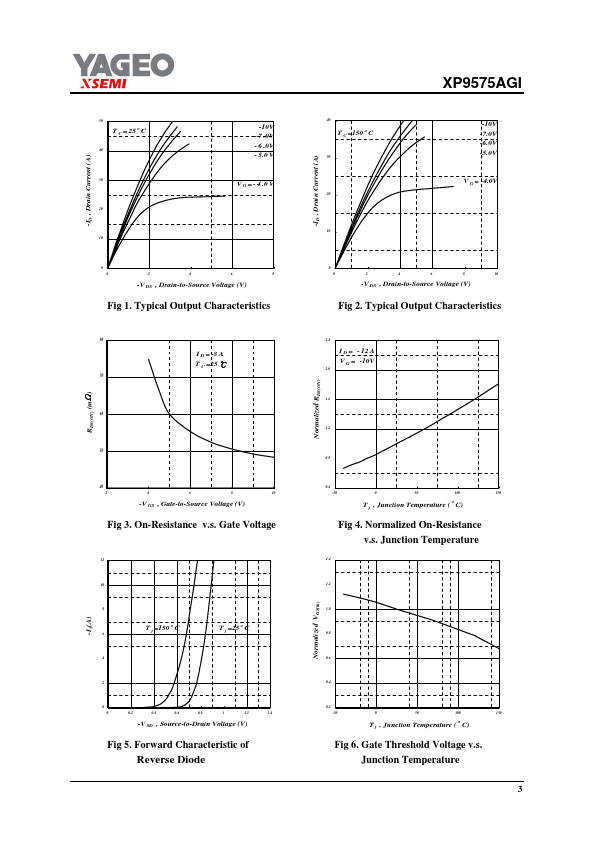

XP9575AGI Datasheet Preview — Preview of XP9575AGI PDF

Datasheet Specifications

Part number: XP9575AGI
Manufacturer: YAGEO
File Size: 248.56 KB
Datasheet: XP9575AGI-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID3 -60V 64mΩ -17A G D S TO-220CFM(I) Absolute M
