XP9575GH P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP9575GH Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Lower Gate Charge D ▼ Simple Drive Requirement ▼ Fast Switching Characteri.
XP9575 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

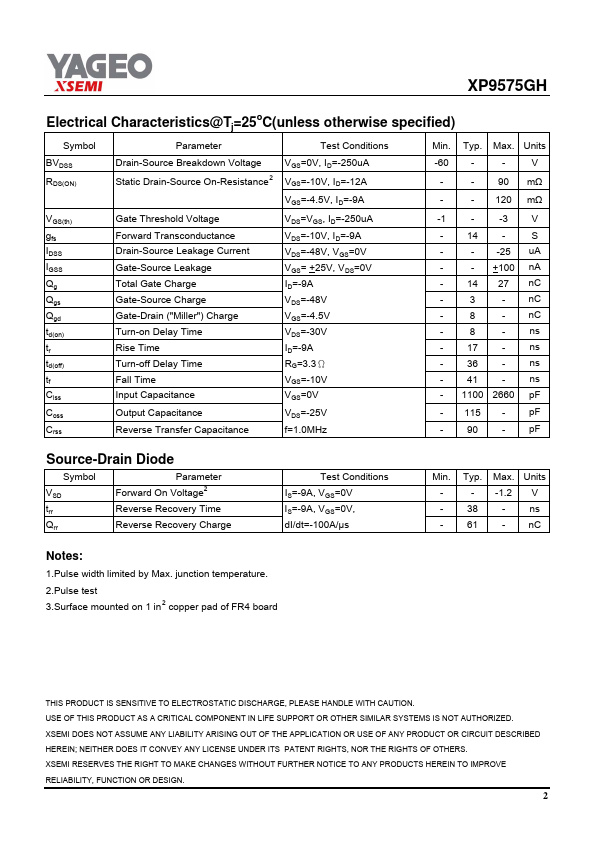

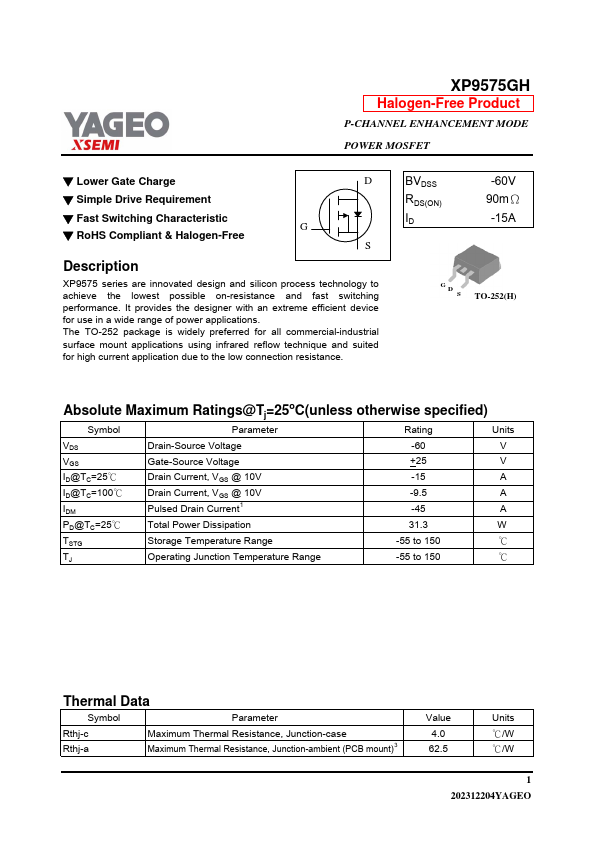

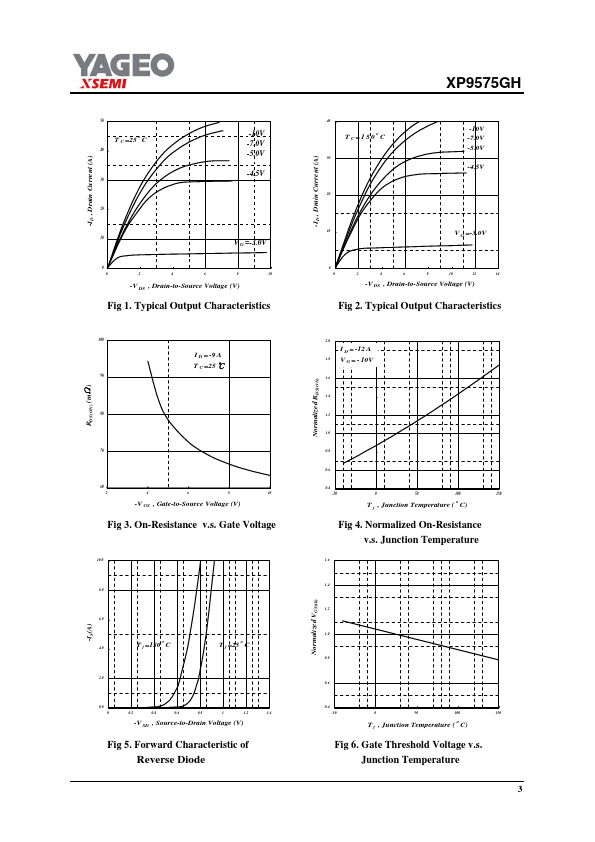

XP9575GH Datasheet Preview — Preview of XP9575GH PDF

Datasheet Specifications

Part number: XP9575GH
Manufacturer: YAGEO
File Size: 210.26 KB
Datasheet: XP9575GH-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID -60V 90mΩ -15A GD S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless ot

XP9575GH Distributors
