XP9870GH N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP9870GH Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Lower Gate Charge ▼ Fast Switching Characteri.
XP9870 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

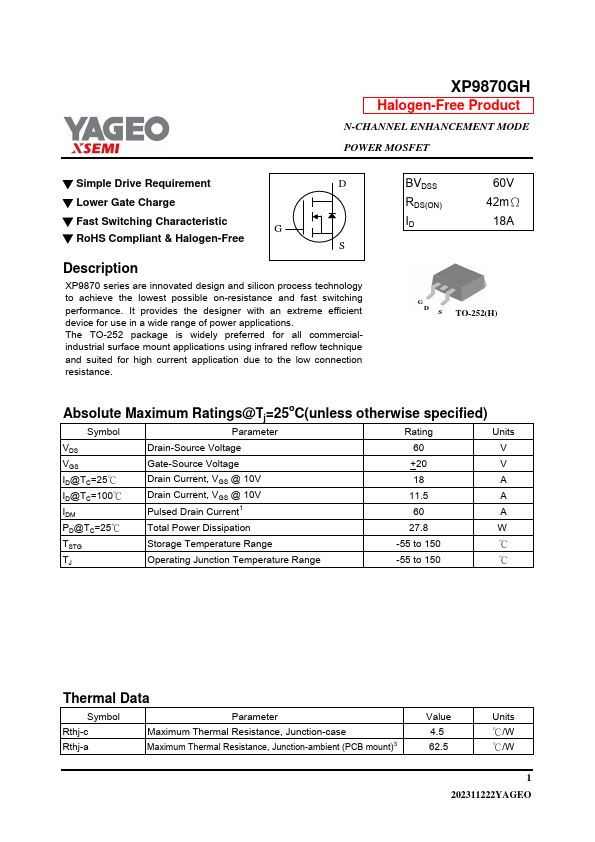

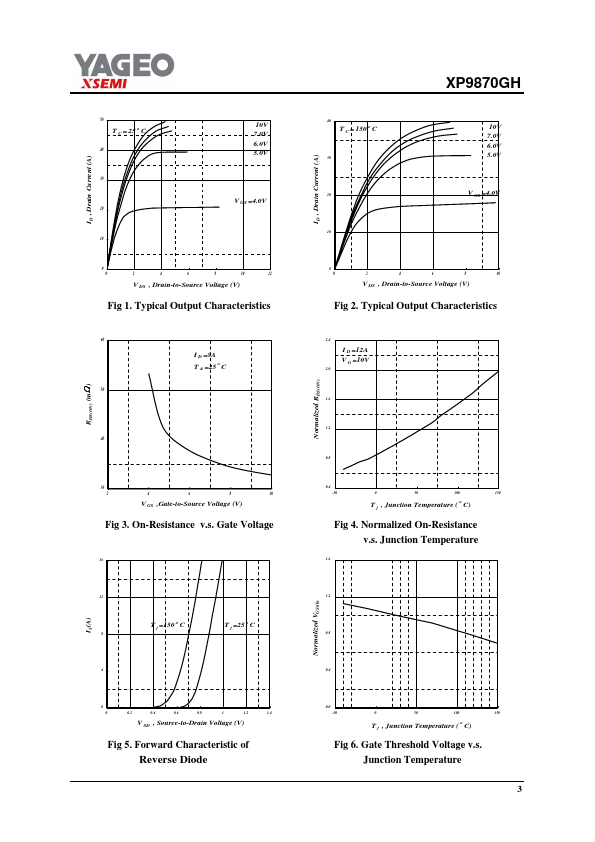

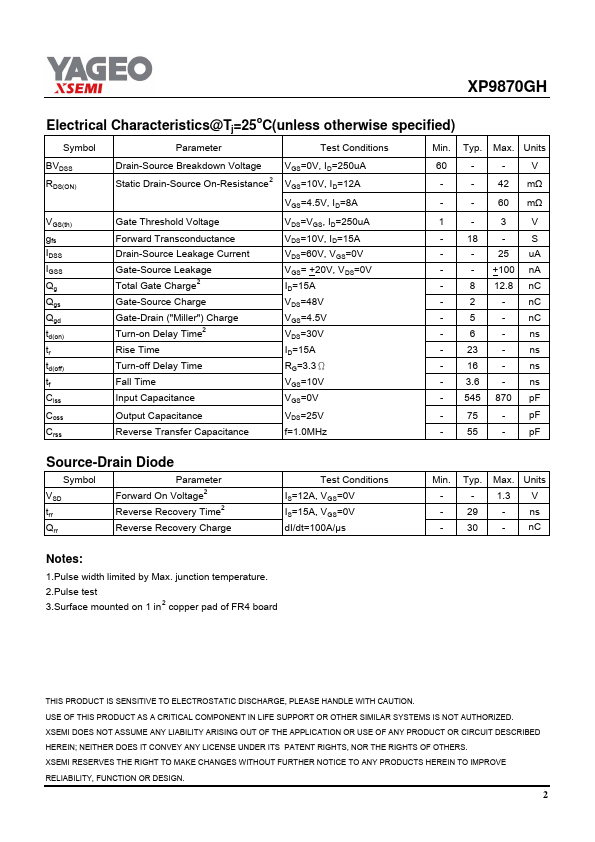

XP9870GH Datasheet Preview — Preview of XP9870GH PDF

Datasheet Specifications

Part number: XP9870GH
Manufacturer: YAGEO
File Size: 209.50 KB
Datasheet: XP9870GH-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID 60V 42mΩ 18A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless ot
