VB1212S-1W DC-DC CONVERTER

Note:PIN”7” can’t connect any component. SIP 1 2 4 6 3,5,7 Connection DIP +Vin +Vin 14 GND GND 1 0V 0V 11 +VO +Vo 9 omitted NC 7 omitted 2,3,4,5,6,8,10,12,13 SHENZHEN SUNYUAN TECHNOLOGY CO., LTD. Meihua Rd. Futian District, Shenzhen 518049, China Tel: +86-755-83100080 Fax: +86-755-83.

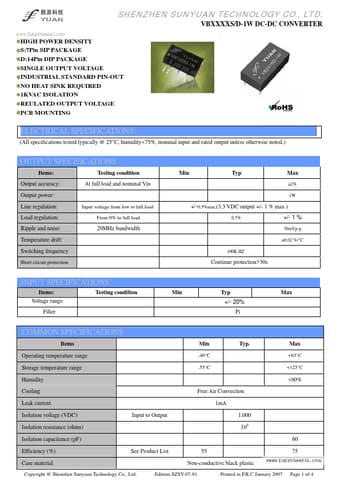

15:29 SHENZHEN SUNYUAN TECHNOLOGY CO., LTD. VBXXXXS/D-1W DC-DC CONVERTER www.DataSheet4U.com HIGH POWER DENSITY S:7Pin SIP PACKAGE D:14Pin DIP PACKAGE SINGLE OUTPUT VOLTAGE INDUSTRIAL STANDARD PIN-OUT NO HEAT SINK REQUIRED 1KVAC ISOLATION REULATED OUTPUT VOLTAGE PCB MOUNTING ELECTRICAL SPECIFICATIONS: (All specifications tested typically @ 25°C, humidity<75%, nominal input and rated output unless otherwise noted.) OUTPUT SPECIFICATIONS Items: Testing condition Output accuracy: At full load .

VB1212S-1W Features

* of the majority of Sunyuan components DC-DC converters is the high galvanic isolation capability. This allows several variations on circuit topography by using a single DC-DC converter. The basic input to output isolation can be used to provide either a simple isolated output power source, or to gen
