VB1212S-2W DC-DC CONVERTER

Note:Pin “7” can’t connect all the others. SIP Connection DIP 1 +Vin Input 14 2 GND Input 1 4 0V Output 11 6 +VO Output 9 SHENZHEN SUNYUAN TECHNOLOGY CO., LTD. Email: sales02@szsunyuan.com www.szsunyuan.com Copyright @ Shenzhen Sunyuan Technology Co., Ltd. Edition-SZSY-07-01 Printed .

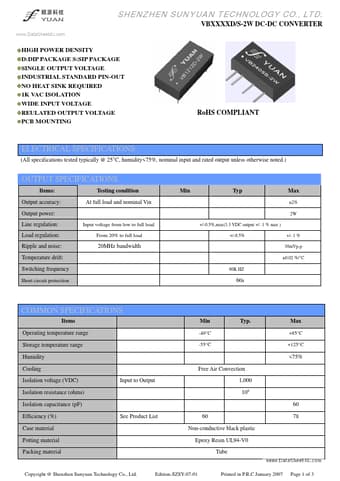

11:06 www.DataSheet4U.com SHENZHEN SUNYUAN TECHNOLOGY CO., LTD. VBXXXXD/S-2W DC-DC CONVERTER HIGH POWER DENSITY D:DIP PACKAGE S:SIP PACKAGE SINGLE OUTPUT VOLTAGE INDUSTRIAL STANDARD PIN-OUT NO HEAT SINK REQUIRED 1K VAC ISOLATION WIDE INPUT VOLTAGE REULATED OUTPUT VOLTAGE PCB MOUNTING RoHS COMPLIANT ELECTRICAL SPECIFICATIONS: (All specifications tested typically @ 25°C, humidity<75%, nominal input and rated output unless otherwise noted.) OUTPUT SPECIFICATIONS Items: Testing condition Out.
