KBPC102, KBPC1005 Bridge Rectifiers

Yangzhou Yangjie

Description

KBPC1005 THRU KBPC110 RoHS COMPLIANT Bridge Rectifiers .

📥 Download Datasheet

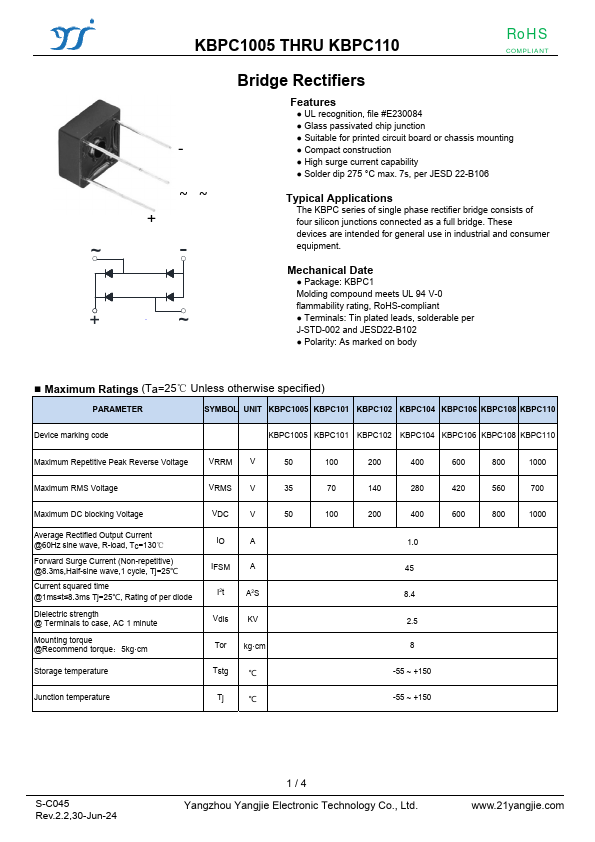

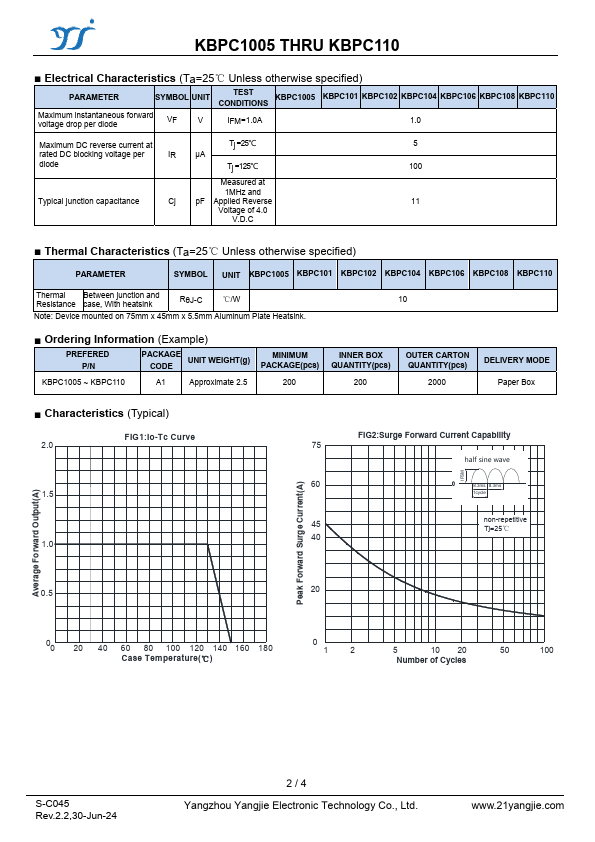

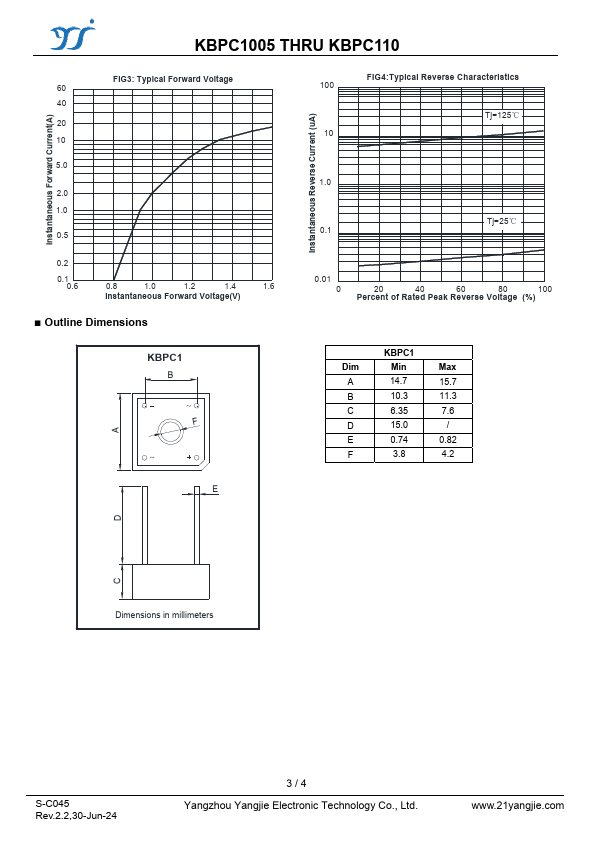

KBPC102 Datasheet Preview — This datasheet PDF includes multiple part numbers: KBPC102, KBPC1005. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: KBPC102, KBPC1005
Manufacturer: Yangzhou Yangjie
File Size: 222.36 KB
Datasheet: KBPC1005-YangzhouYangjie.pdf
Description: Bridge Rectifiers
Note: This datasheet PDF includes multiple part numbers: KBPC102, KBPC1005.
Please refer to the document for exact specifications by model.

Features

* UL recognition, file #E230084
* Glass passivated chip junction
* Suitable for printed circuit board or chassis mounting -
* Compact construction
* High surge current capability

Applications

* The KBPC series of single phase rectifier bridge consists of four silicon junctions connected as a full bridge. These devices are intended for general use in industrial and consumer equipment. Mechanical Date
* Package: KBPC1 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
