SMV2020L, SMV2020L_Z OSCILLATOR

SMV2020L Description

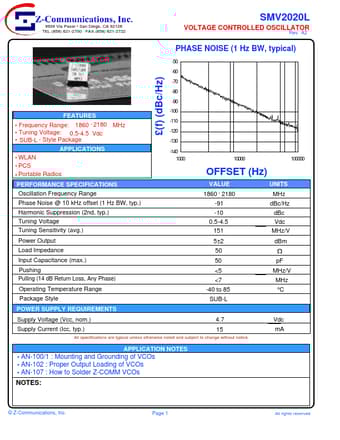

www.DataSheet4U.com 9939 Via Pasar * San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 SMV2020L VOLTAGE CONTROLLED OSCILLATOR Rev A2 .

SMV2020L Features

* Frequency Range: 1860 - 2180 MHz
* Tuning Voltage: 0.5-4.5 Vdc

SMV2020L Applications

* WLAN
* PCS
* Portable Radios PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ. ) Harmonic Suppression (2nd, typ. ) Tuning Voltage Tuning Sensitivity (avg. ) Power Output Load Impedance Input Capacitance (max. ) Pushing Pulling (14
